P01 + P09 / EIGHT NEW OPTIONS
One smaller and three larger arrays for each holder, up to three times the holes. Four rows deep; the extra capacity goes across the board.
Four Pegstr-derived closed-bottom bins: compact, wide, large and three-pocket. Flat bases, 4/6/8-cell widths and current canonical tighter pegs. Form review; not yet sliced or test-printed.

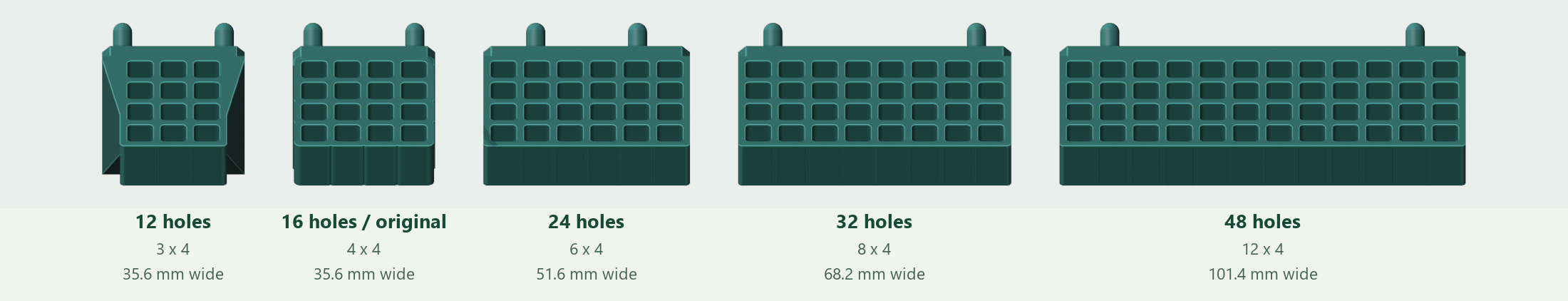

See the four bins, rear mounts and source recipes →P01 / SAME PROFILE, MORE CHOICES
6.5 mm square seats · 8.3 mm pitch

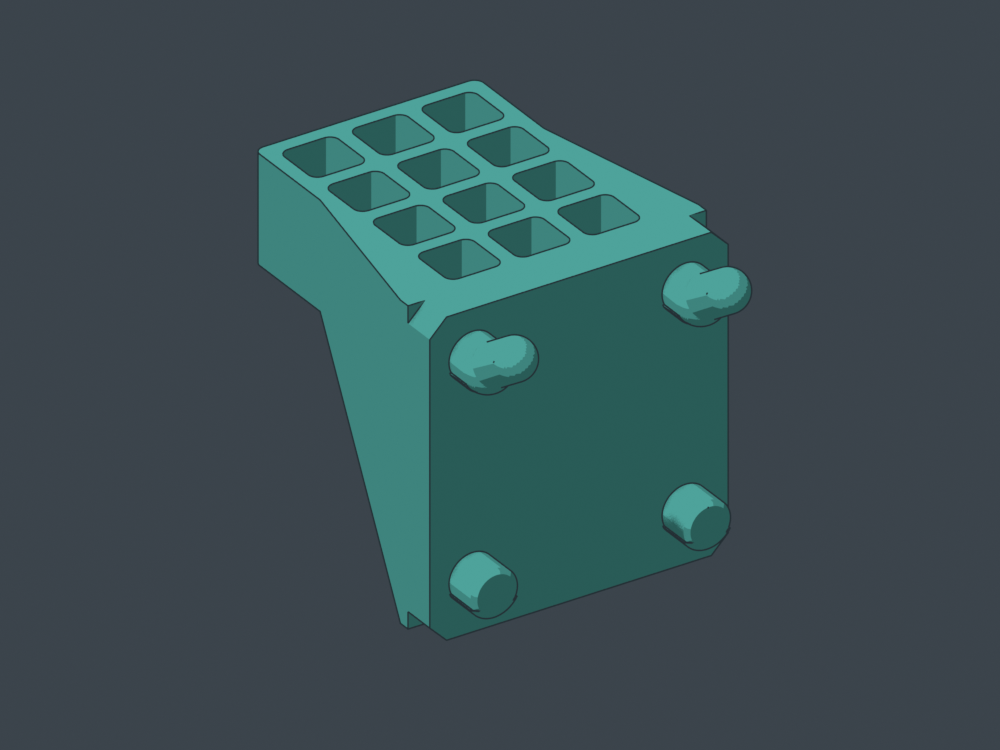

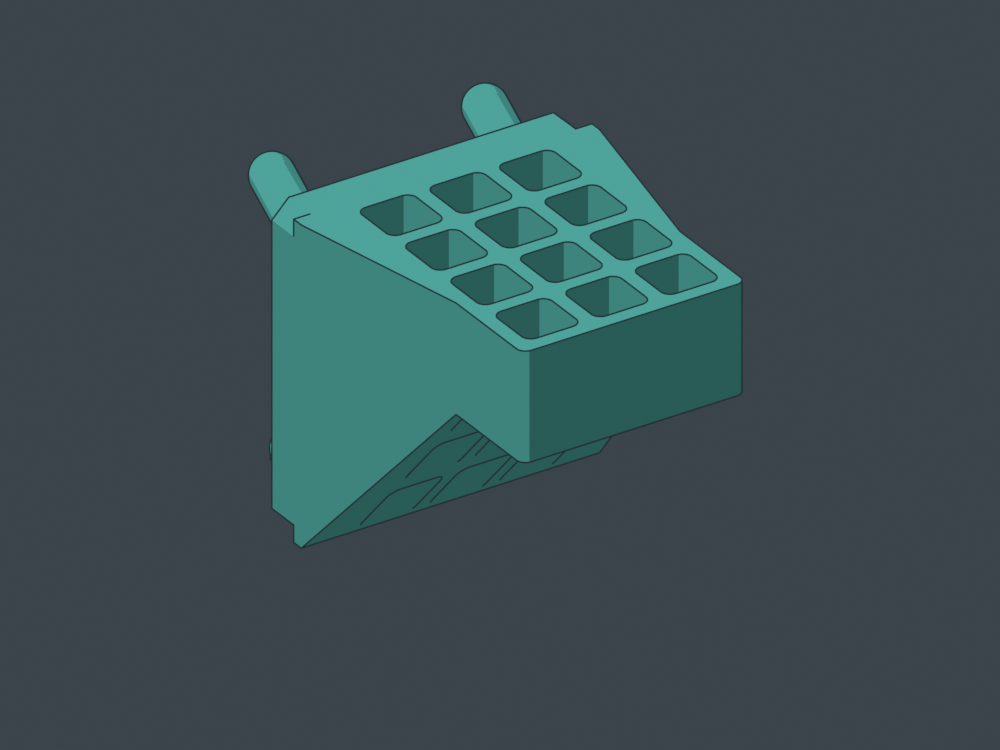

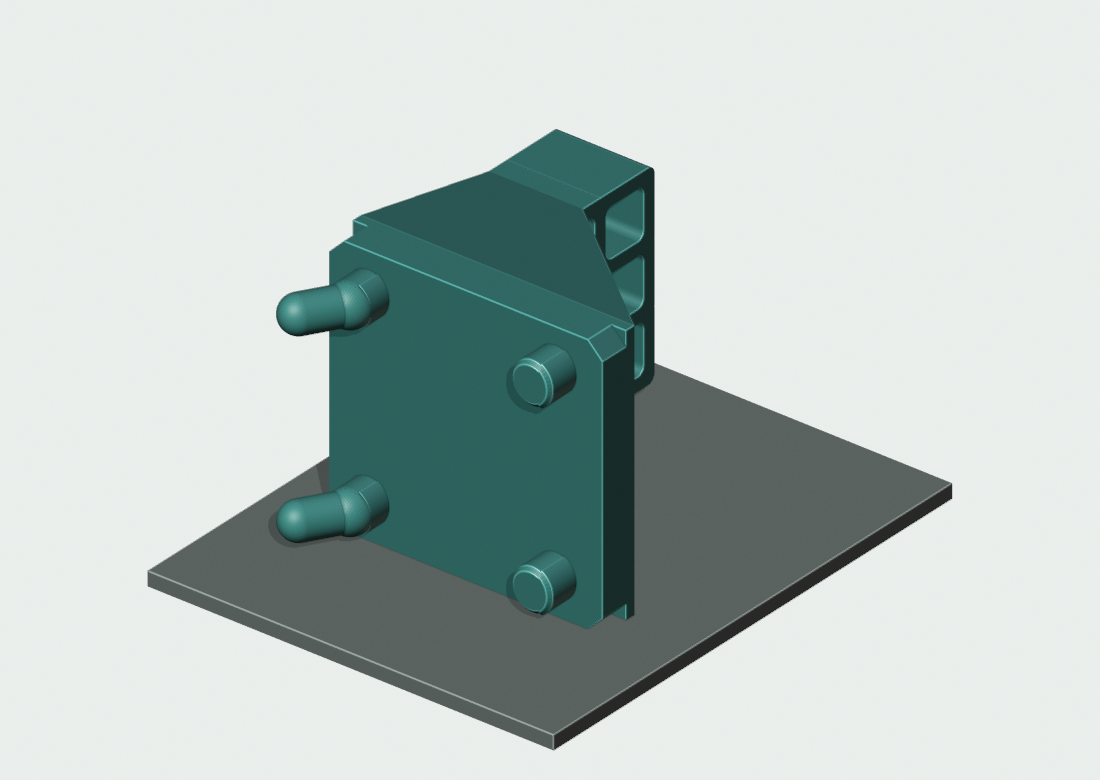

P01-12 · Smaller
3 wide × 4 deep
35.6 mm wide · 49.7 mm overall depth
Local plate-grown supports remain necessary under the pegs. Square roofs bridge about 6.5 mm; round roofs retain the original curved overhang. P01-12 also needs a local support under the narrower pocket bank, 4.44 mm above the back-wall edge. No slicer or print qualification.

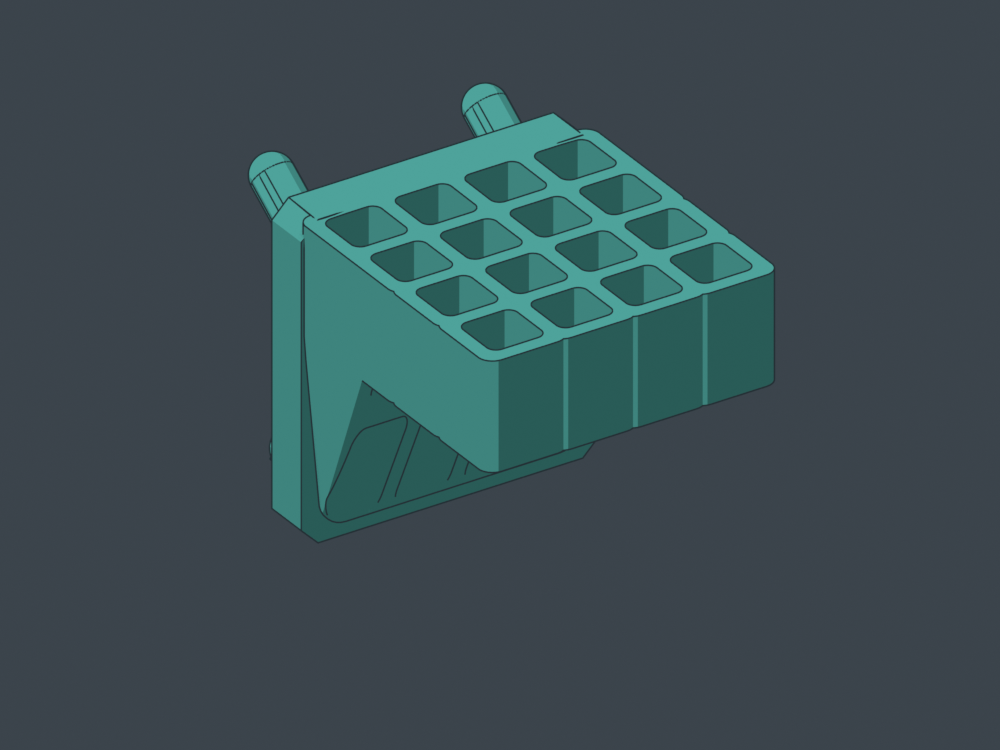

Geometry checksP01 · Original

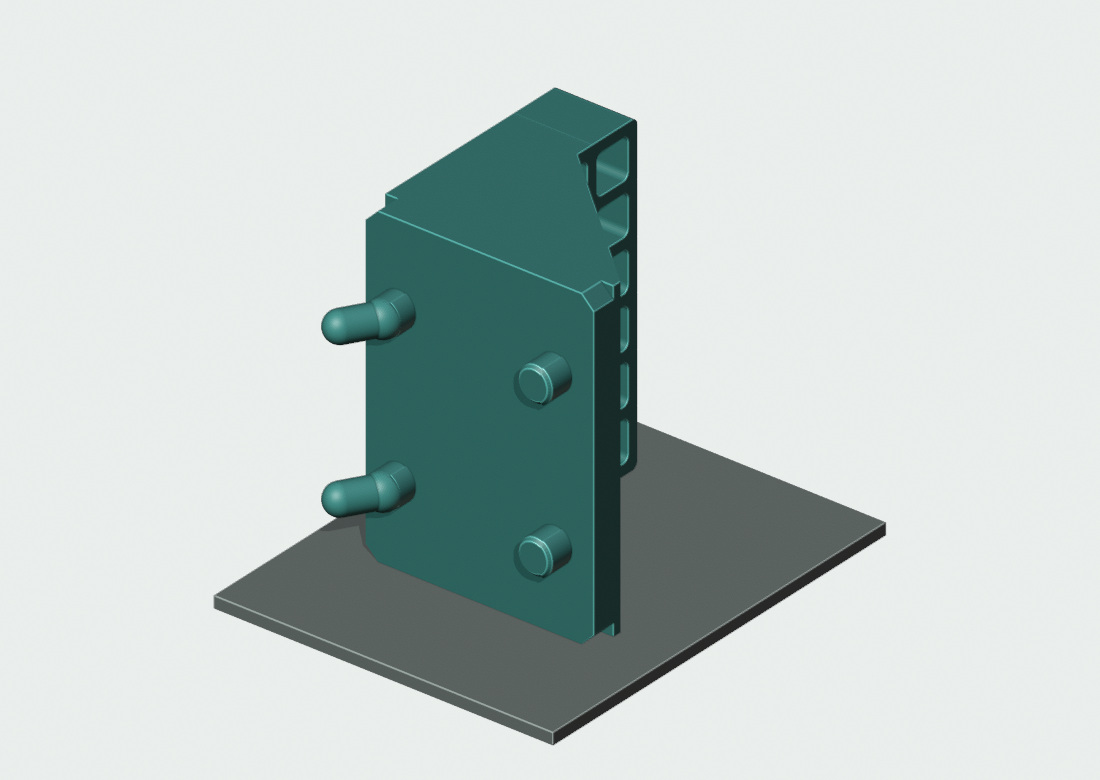

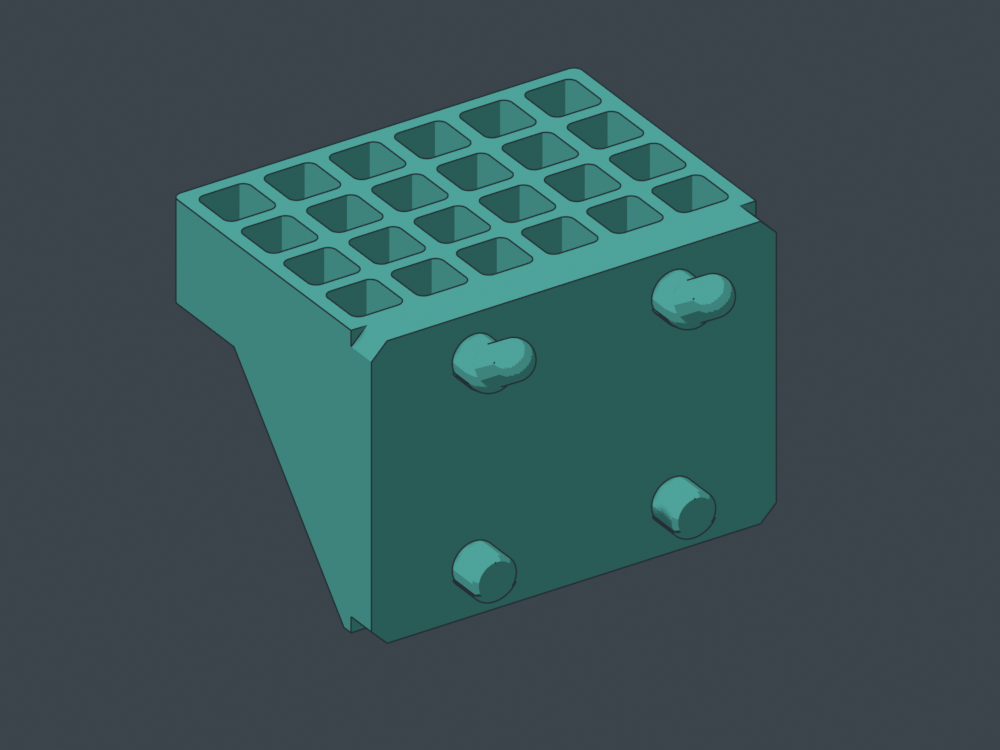

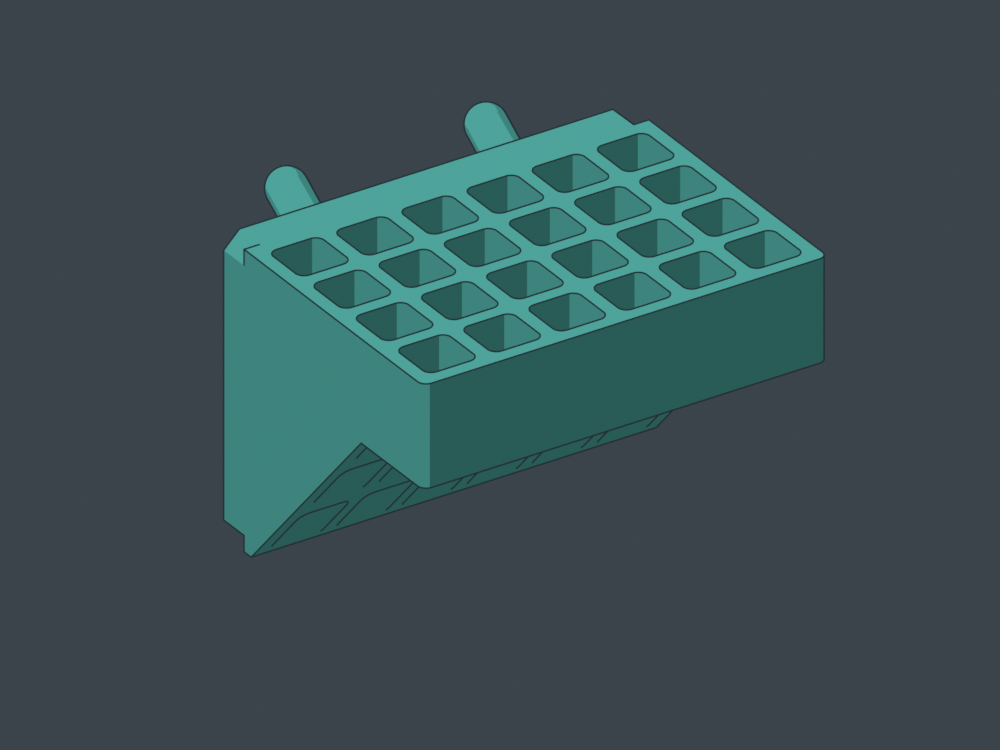

P01-24 · 1.5× capacity
6 wide × 4 deep
51.6 mm wide · 49.7 mm overall depth
Local plate-grown supports remain necessary under the pegs. Square roofs bridge about 6.5 mm; round roofs retain the original curved overhang. P01-12 also needs a local support under the narrower pocket bank, 4.44 mm above the back-wall edge. No slicer or print qualification.

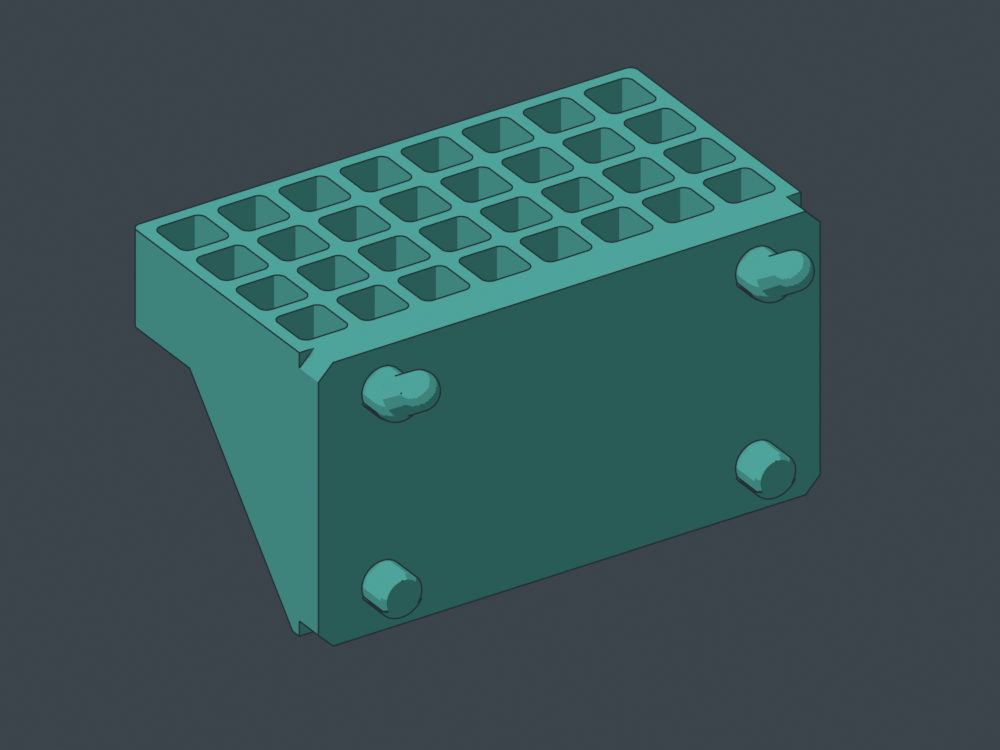

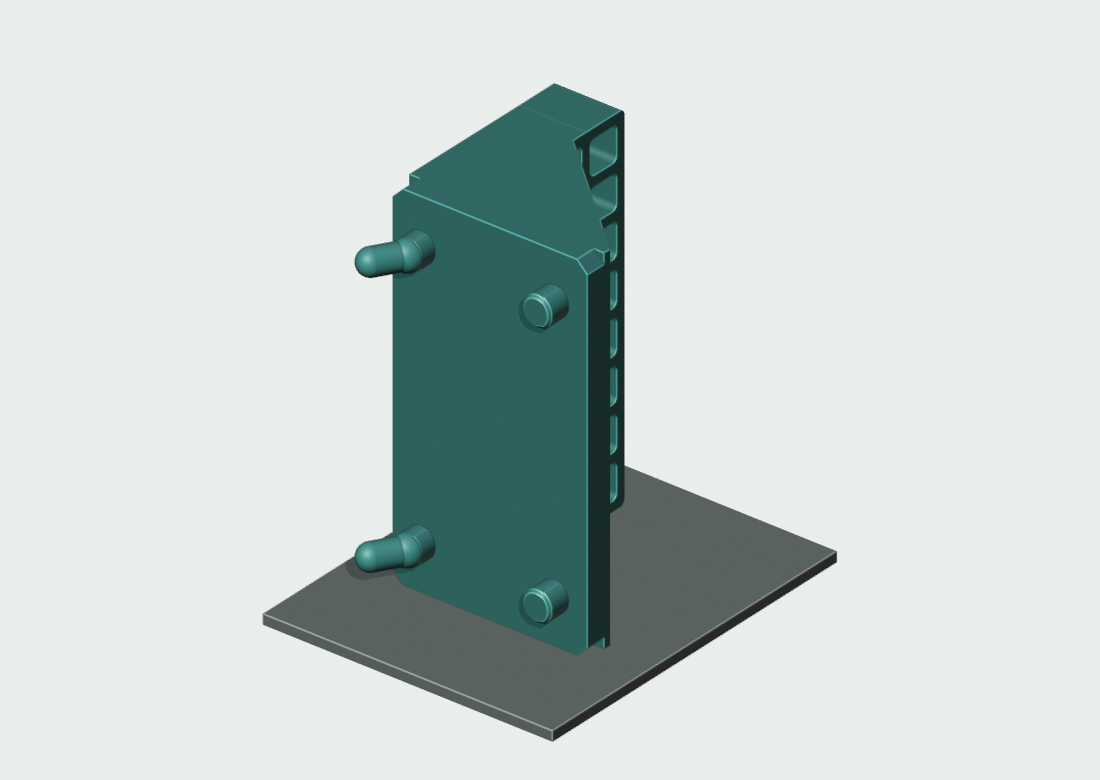

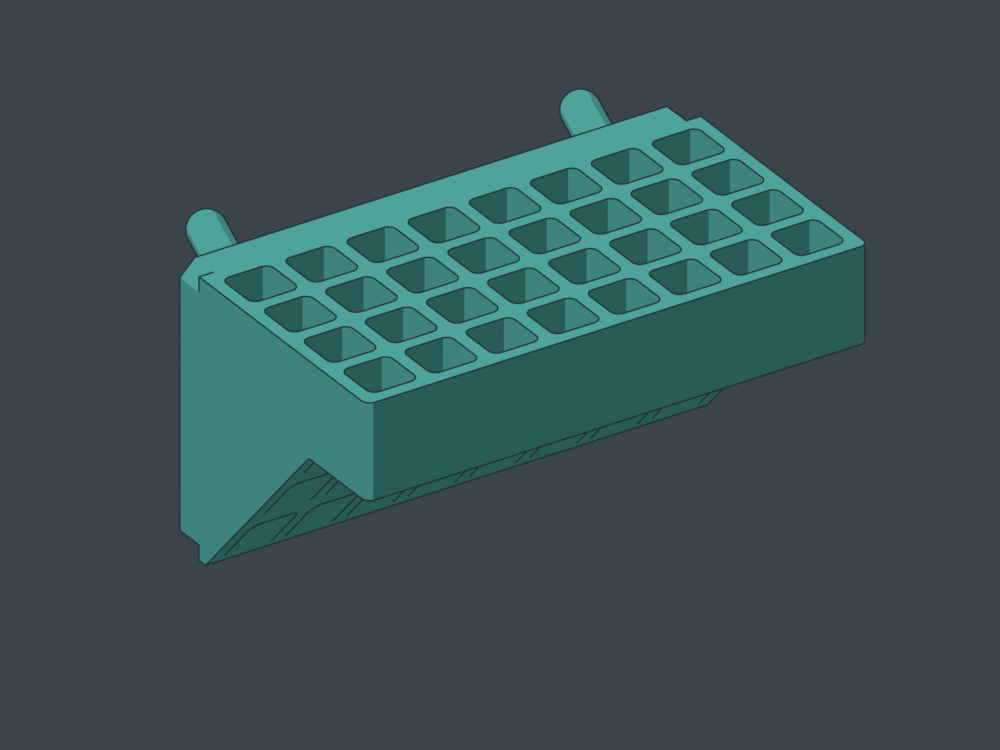

Geometry checksP01-32 · 2× capacity
8 wide × 4 deep
68.2 mm wide · 49.7 mm overall depth
Local plate-grown supports remain necessary under the pegs. Square roofs bridge about 6.5 mm; round roofs retain the original curved overhang. P01-12 also needs a local support under the narrower pocket bank, 4.44 mm above the back-wall edge. No slicer or print qualification.

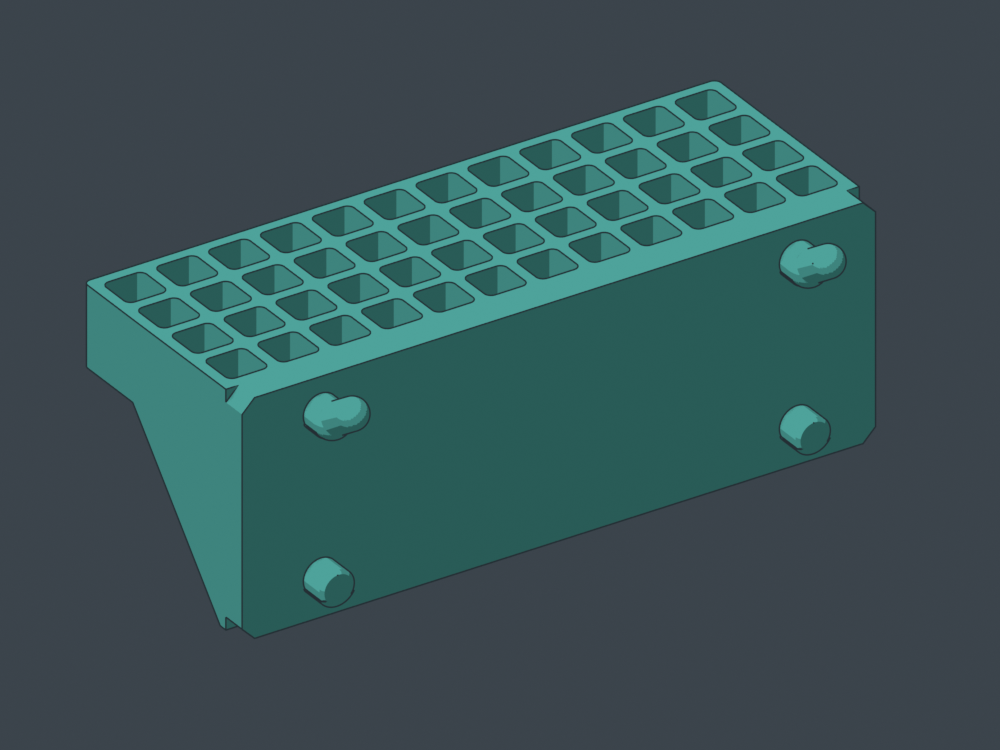

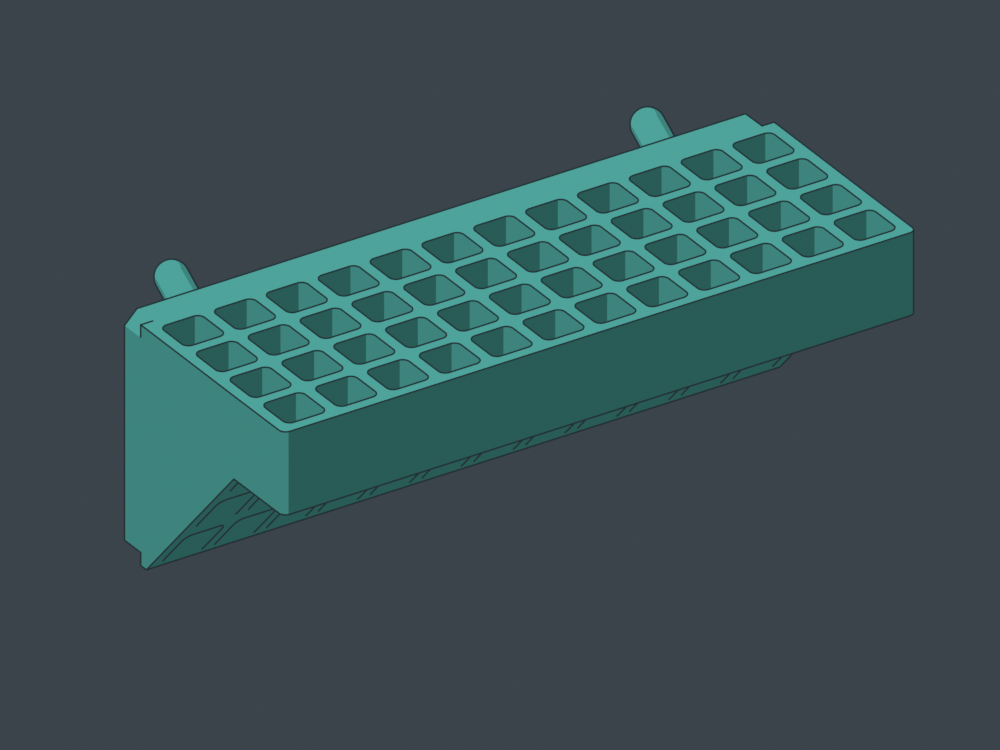

Geometry checksP01-48 · 3× capacity
12 wide × 4 deep
101.4 mm wide · 49.7 mm overall depth
Local plate-grown supports remain necessary under the pegs. Square roofs bridge about 6.5 mm; round roofs retain the original curved overhang. P01-12 also needs a local support under the narrower pocket bank, 4.44 mm above the back-wall edge. No slicer or print qualification.

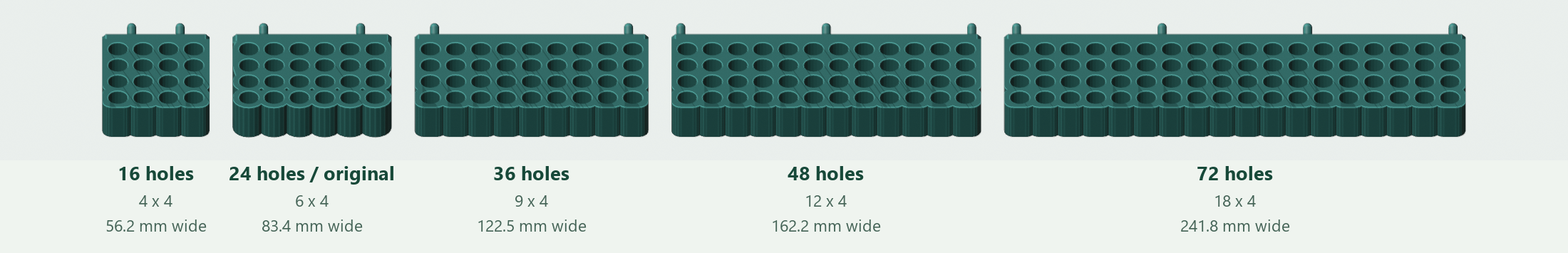

Geometry checksP09 / SAME PROFILE, MORE CHOICES
Nominal 10 mm round seats · 13.25 mm pitch

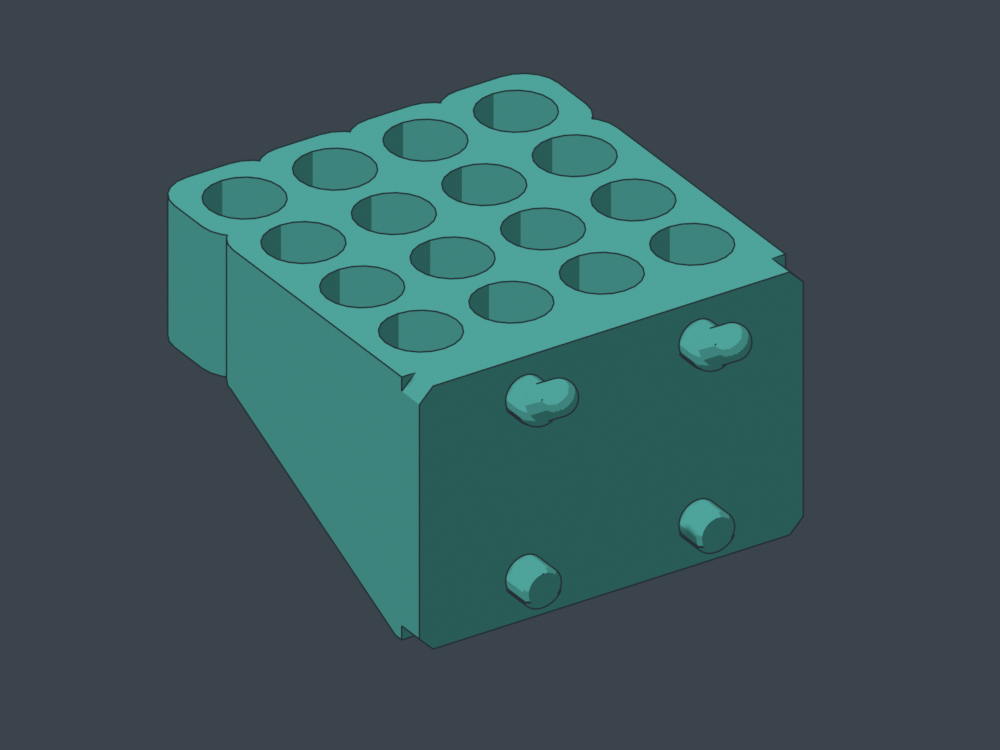

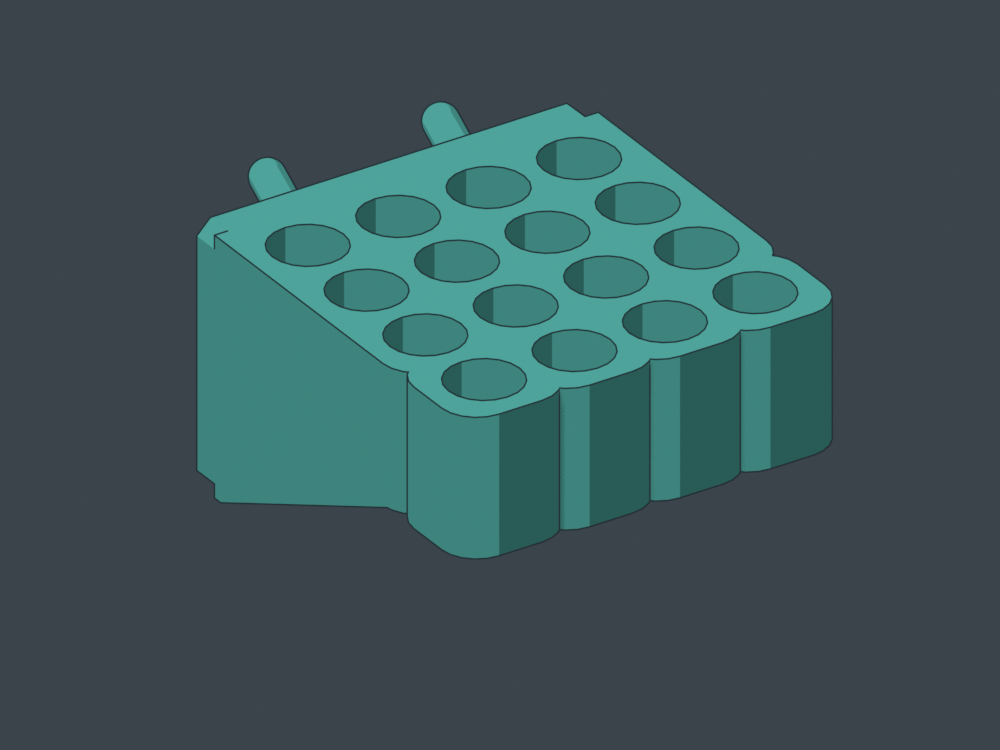

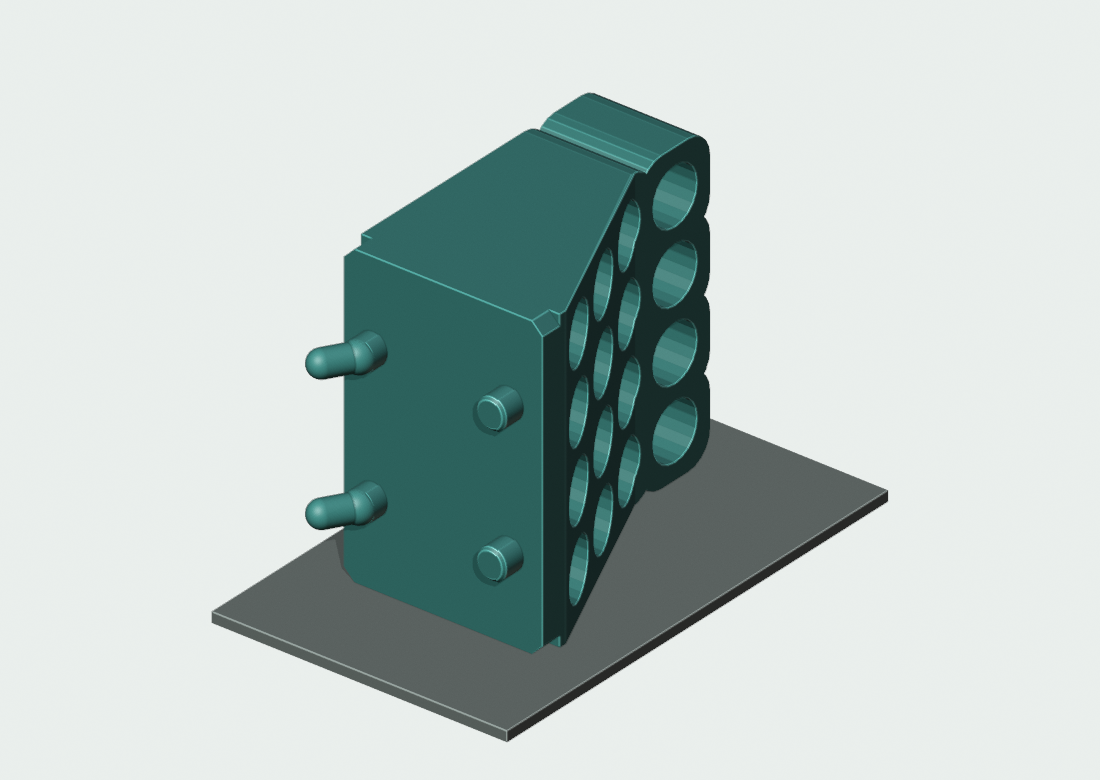

P09-16 · Smaller
4 wide × 4 deep
56.2 mm wide · 70.9 mm overall depth
Local plate-grown supports remain necessary under the pegs. Square roofs bridge about 6.5 mm; round roofs retain the original curved overhang. P01-12 also needs a local support under the narrower pocket bank, 4.44 mm above the back-wall edge. No slicer or print qualification.

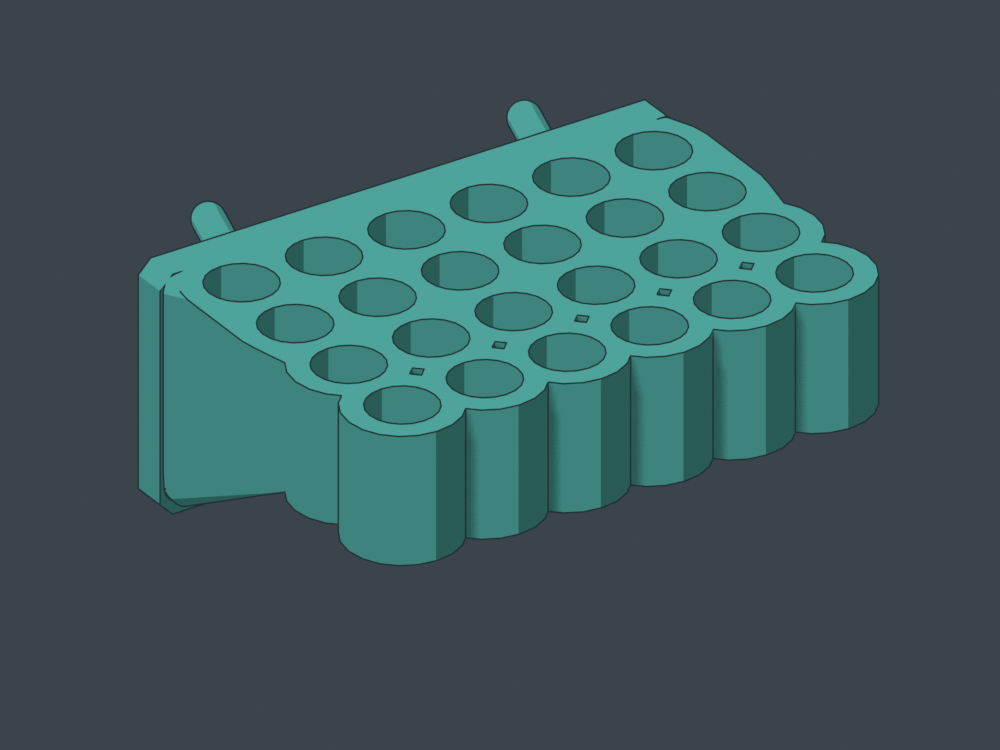

Geometry checksP09 · Original

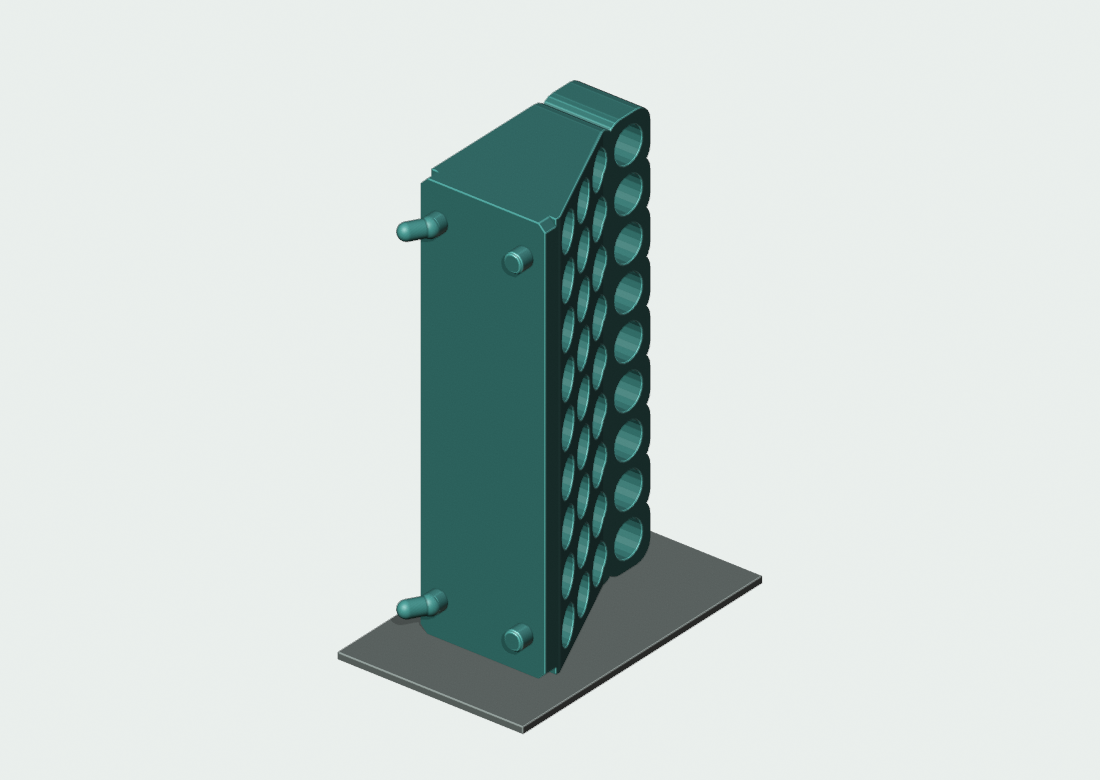

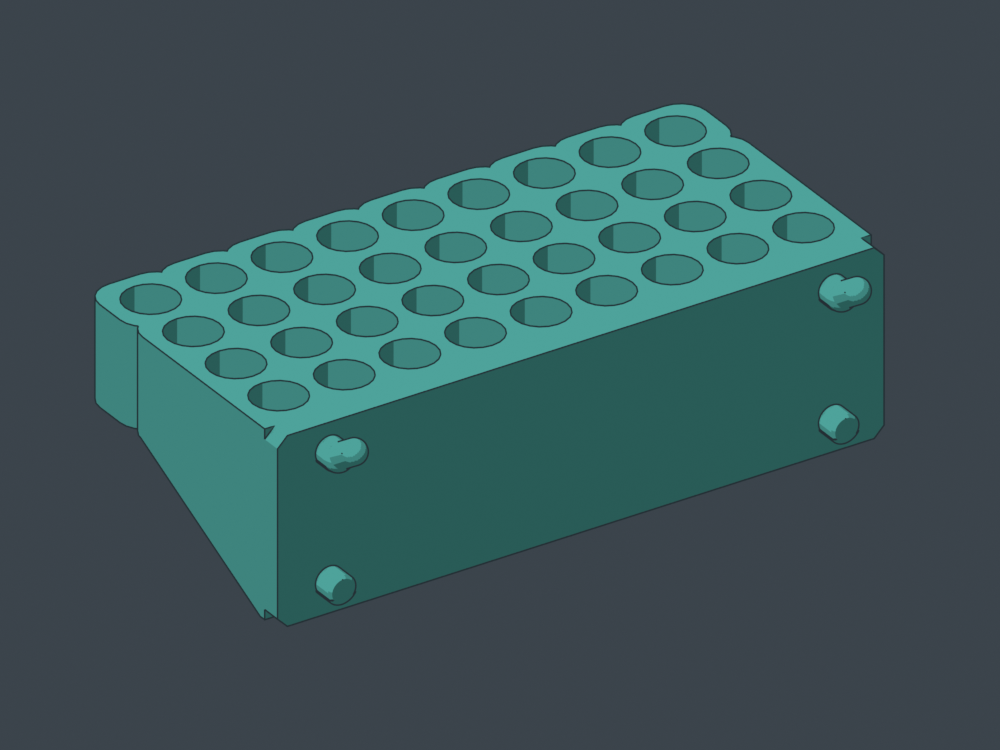

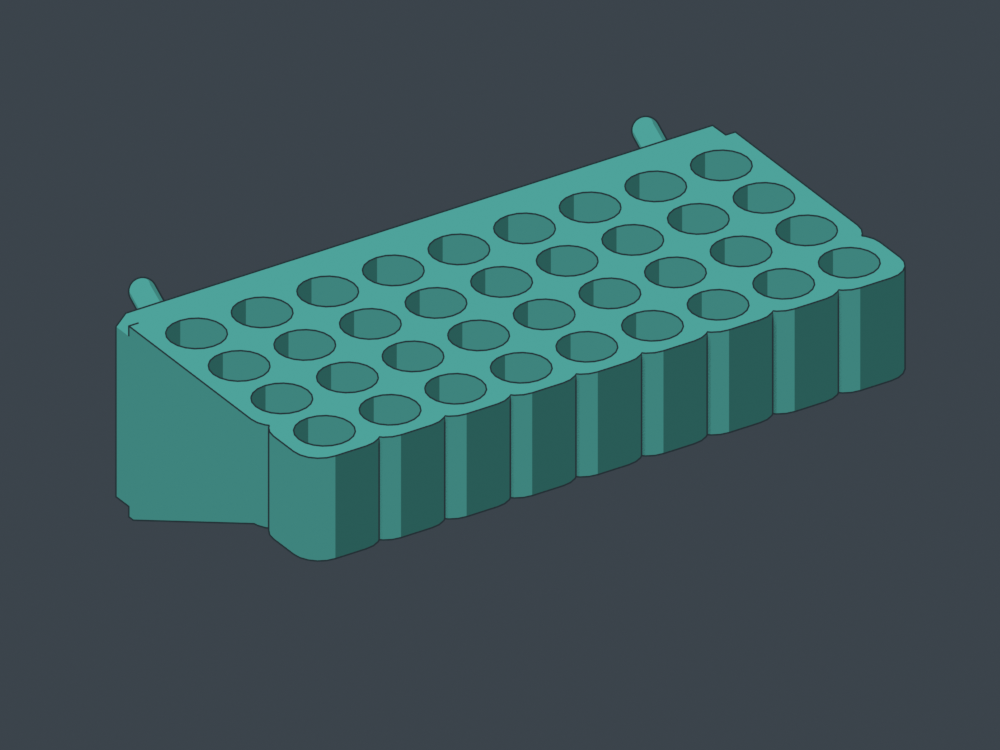

P09-36 · 1.5× capacity
9 wide × 4 deep
122.5 mm wide · 70.9 mm overall depth
Local plate-grown supports remain necessary under the pegs. Square roofs bridge about 6.5 mm; round roofs retain the original curved overhang. P01-12 also needs a local support under the narrower pocket bank, 4.44 mm above the back-wall edge. No slicer or print qualification.

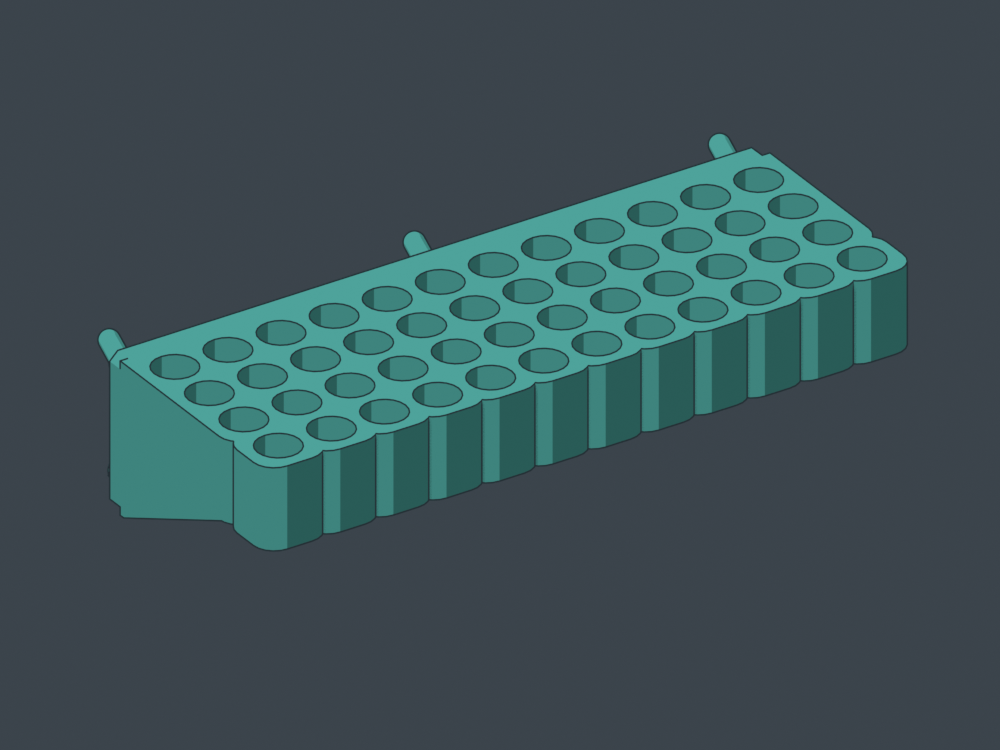

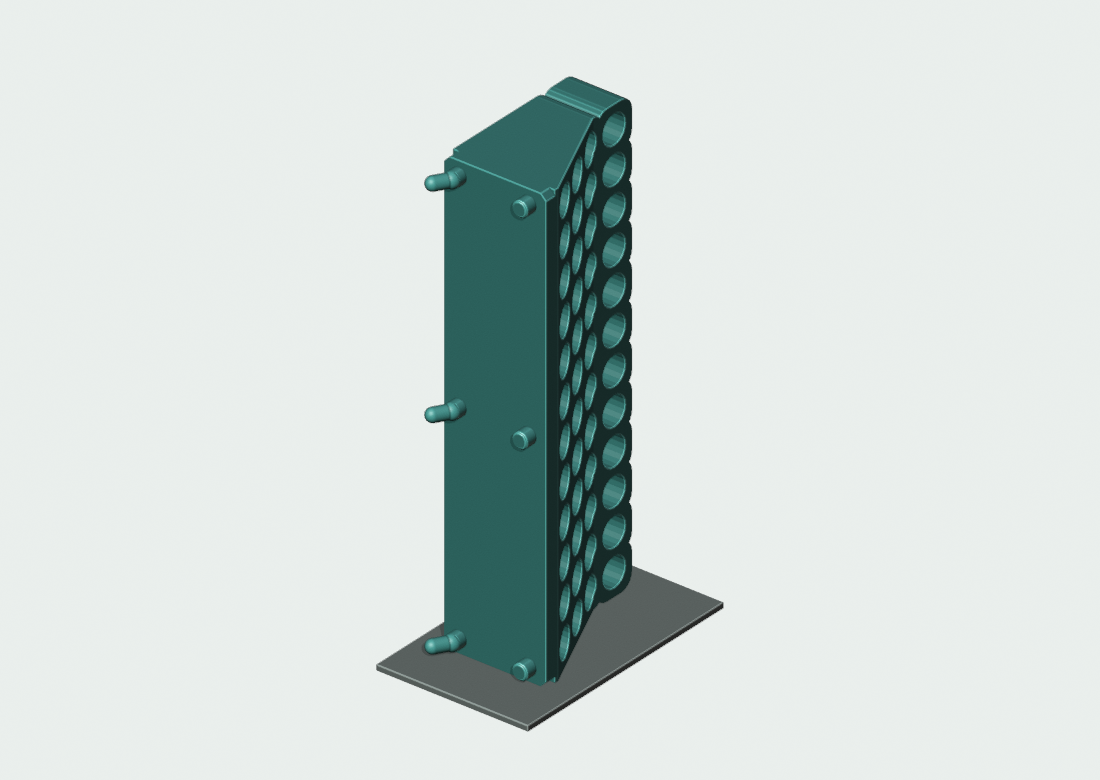

Geometry checksP09-48 · 2× capacity
12 wide × 4 deep
162.2 mm wide · 70.9 mm overall depth
Local plate-grown supports remain necessary under the pegs. Square roofs bridge about 6.5 mm; round roofs retain the original curved overhang. P01-12 also needs a local support under the narrower pocket bank, 4.44 mm above the back-wall edge. No slicer or print qualification.

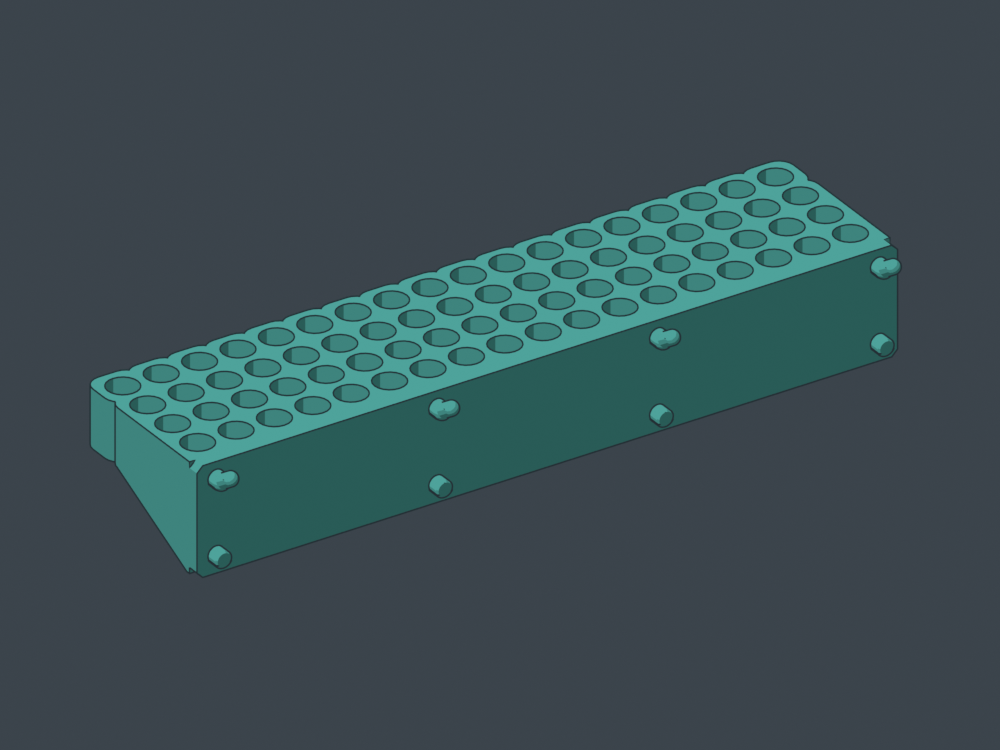

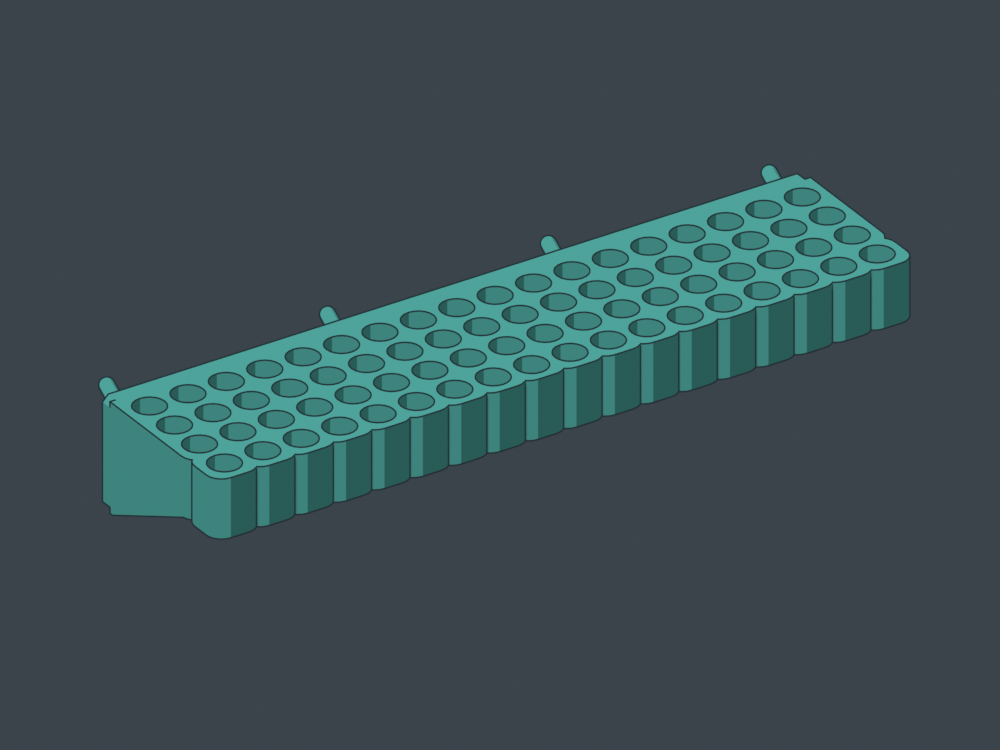

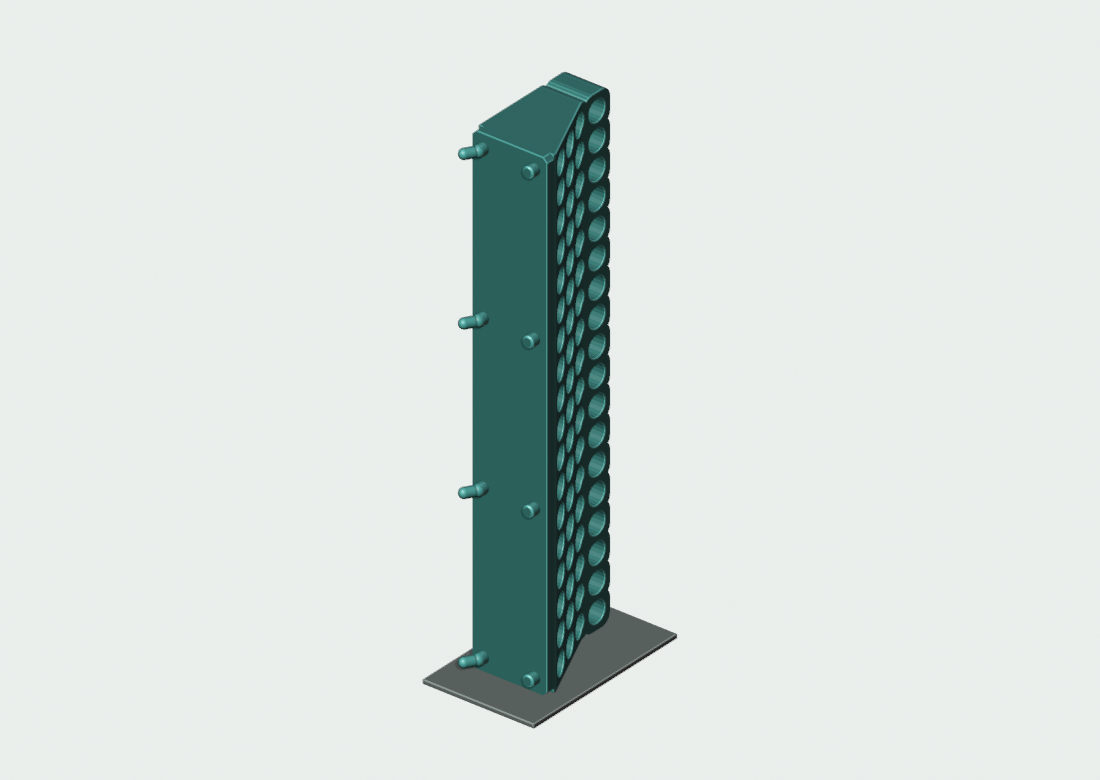

Geometry checksP09-72 · 3× capacity
18 wide × 4 deep
241.8 mm wide · 70.9 mm overall depth
Local plate-grown supports remain necessary under the pegs. Square roofs bridge about 6.5 mm; round roofs retain the original curved overhang. P01-12 also needs a local support under the narrower pocket bank, 4.44 mm above the back-wall edge. No slicer or print qualification.

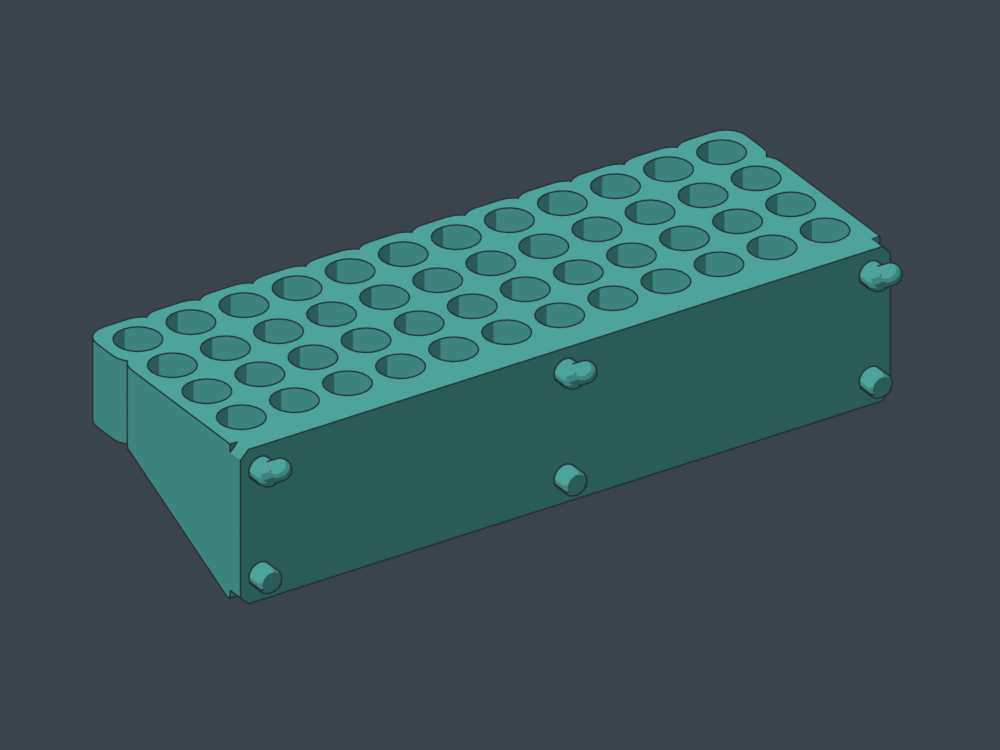

Geometry checksThe supplied Pegstr OpenSCAD modules generate these bodies. Set profile, columns and rows; the flush back and custom peg spacing follow the array. The ZIP includes the library, pegs and all eight presets.

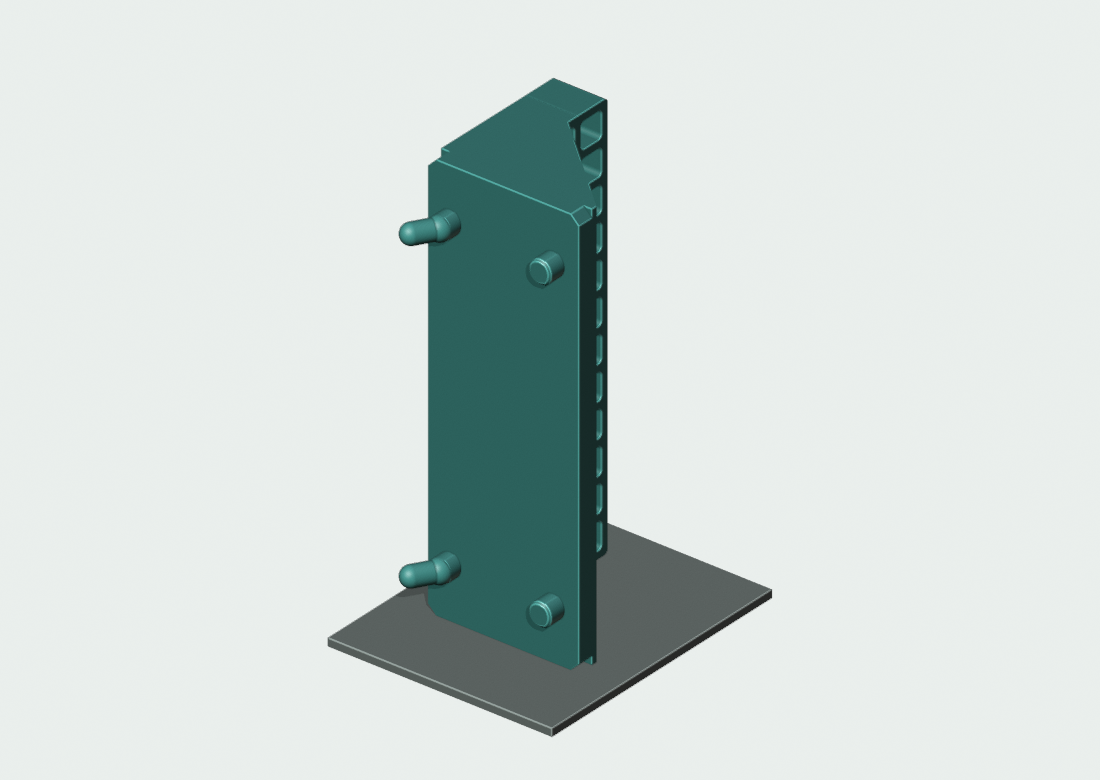

Opening dimensions and pitch are checked against the archived originals. The supplied generator has slightly different outer rounding and gussets; P09 is 0.33 mm shallower. The original models remain available above. These are form-review models, with the chosen print face shown; they have not been sliced or physically tested.
