Work in progress

Screwdriver stations.

The lettered sampler did its job: letters E, I, M and O became four magnetic holders, sliced and ready for a test print. The sampler remains below for anyone choosing their own letters.

Ready to test print · MH01-MH04 v1

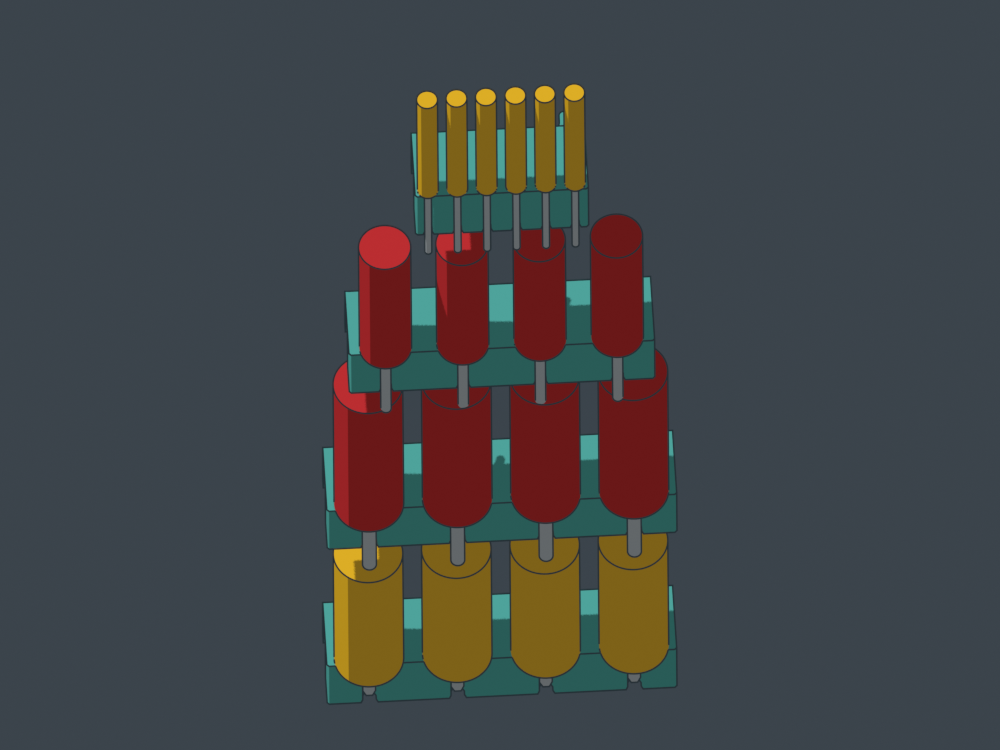

The letters became holders.

Six-seat jeweler bar (E), four-seat 6 mm (I) and 8 mm (M) bars printed in pairs for eight seats, and a wide-pitch 1/4 inch hex bar (O). Seat pitch follows the 25.4 mm grid so bars tile across the 2 mm seam.

Sealed 20 × 10 × 3 mm magnets, same tight pegs as the sampler.

Review the four holders →Download print kit

CAD and sliced paths checked. Not yet printed.

Current test print · MS01 v3 recoverable

Test the fit. Keep the magnets.

Same A–P shaft seats, now with open 10.8 × 3.8 mm channels for your 20 × 10 × 3 mm magnets. Load after printing; matching flat-print combs retain all eight magnets with removable tape.

No print pause or permanent caps. Peel the tape and slide the magnets out for the next test.

Review recoverable v3 →Download v3 print kit

CAD and sliced paths checked. Physical sliding and magnetic feel await testing. Sealed v2 remains available.

Earlier design studies

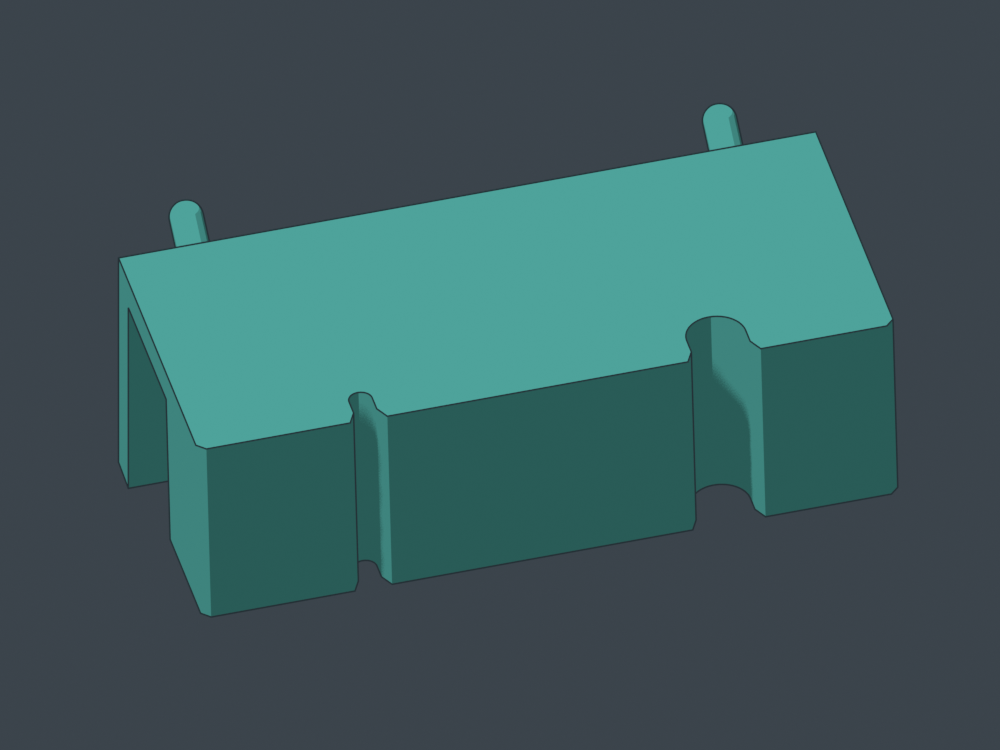

Magnetic bar F v1 · two-seat test

Set down and lean back

Small and large half-round shaft seats, flat bearing shelf, and two enclosed magnets. Four-cell width; pause-loaded magnets with long pre-printed plugs. Form review, not test-printed.

Explore the magnetic bar →

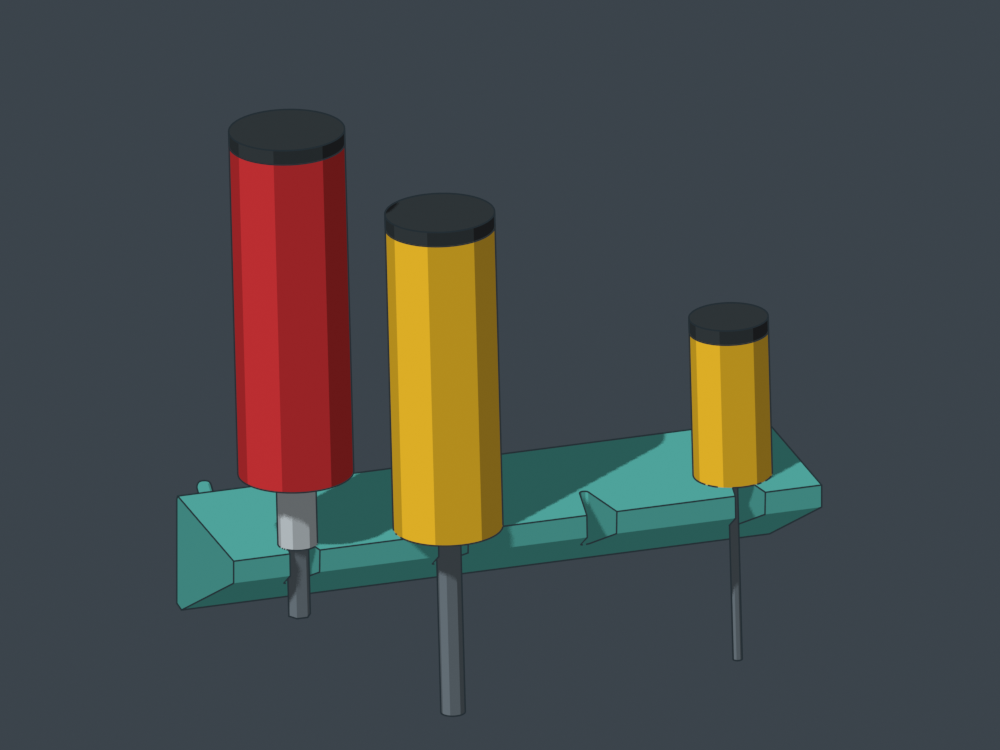

Bit drivers v4 · rounded V slots

Locate the shaft

Four rounded V slots for 3-8 mm shafts and 1/4-inch hex bits. Collar tips bear on the flat top, which slopes into the board. No handle recesses. Inverted print face with matching hook flats.

Explore bit-driver seats →

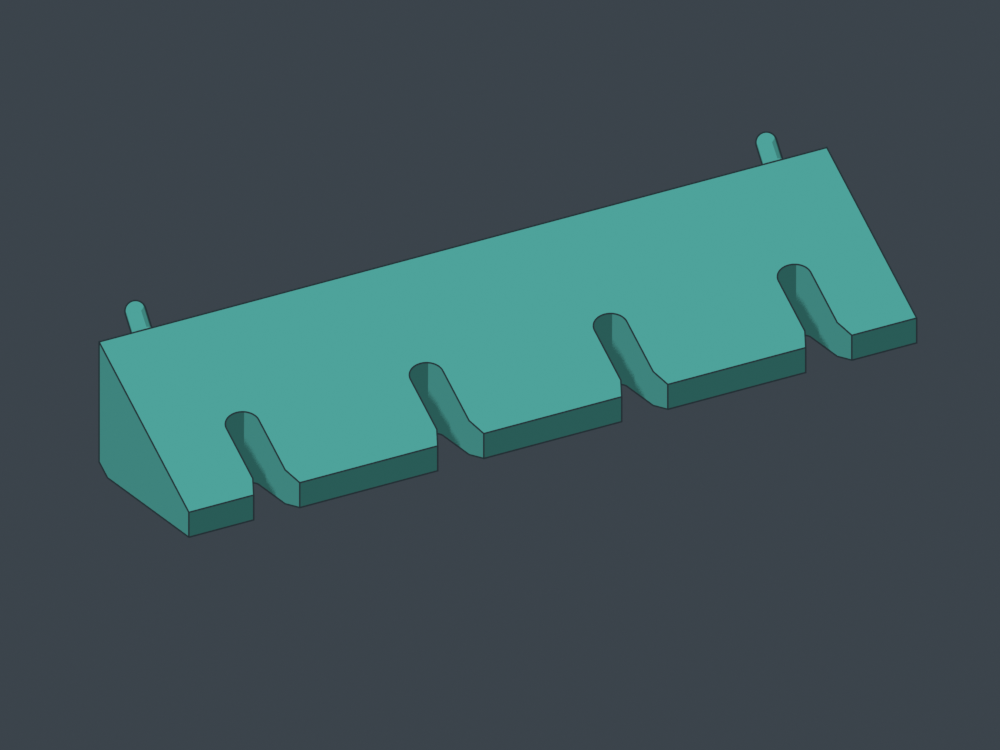

D v2 · hook-tip flats

Flat top on the bed

One four-driver candidate. No recessed-seat roofs. Holder top and both truncated hook tips contact the bed. Local peg supports are expected. Open seats still allow backward rocking.

Explore inverted D →

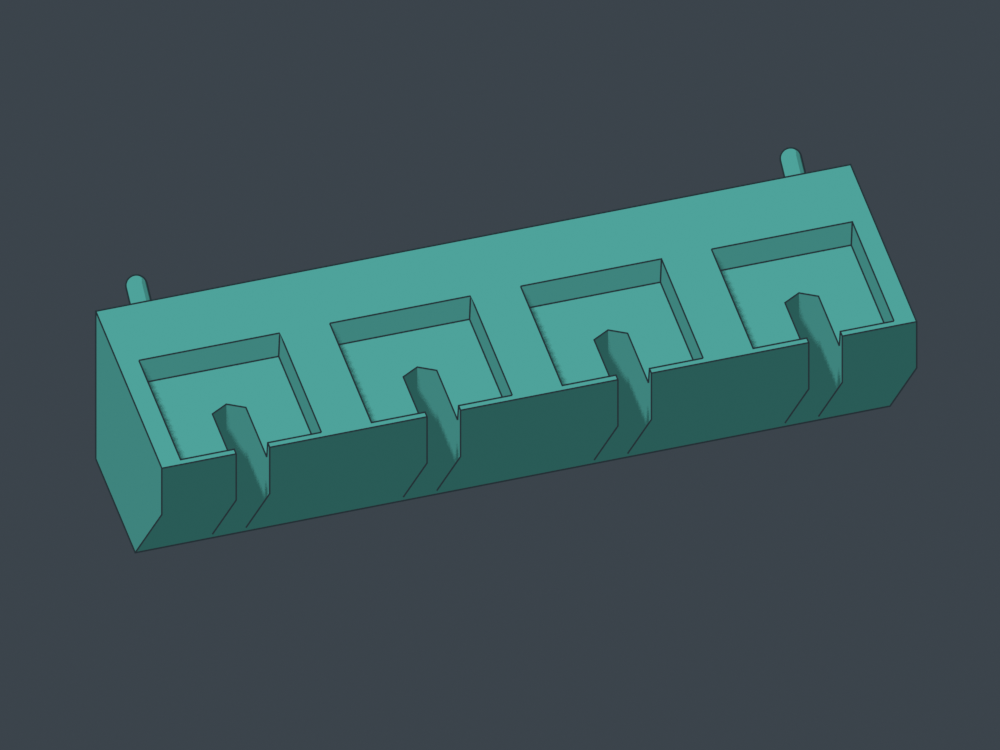

C v1 · magnetic prototype

Flat seats + V saddles

One four-driver candidate. Provisional 10 × 10 × 3 mm magnets, loading chimneys and preprinted plugs. Unsliced and untested.

Explore Flat seats + V saddles →

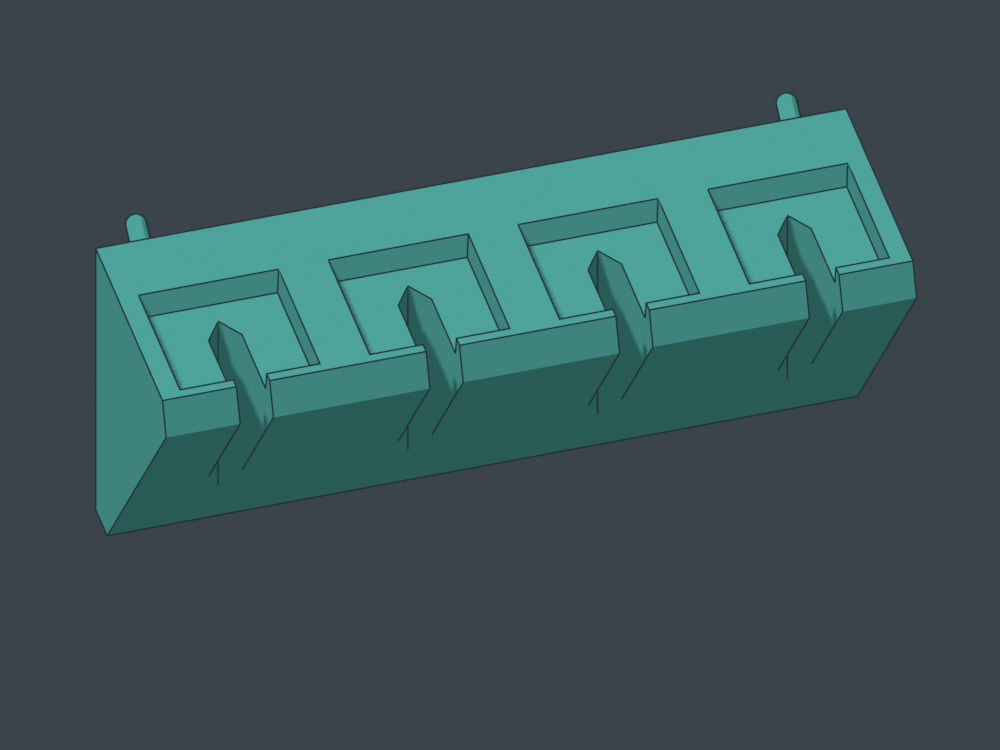

B v3 · diagonal bed

Flat square seats

Four rack sizes. Zero-support review slices; backward rocking and real handle-shoulder fit remain unresolved.

Explore Flat square seats →

A v2 · broad base

Shoulder seats

Four rack sizes. Broader foundations, but the working seats retain the observed centering and rocking issue.

Explore Shoulder seats →
