The letters became holders.

MH01-MH04 v1 · ready to test print. The MS01 trial picked four seats: E, I, M and O. Each now has its own magnetic bar with the same seat, the same 0.8 mm seat skin, the same flat 5 degree bearing top and the same tight pegs (fit e586ab4ff6) as the sampler you mounted.

Print plate 1 first. The plugs must exist before a holder reaches its pause. Magnets are sealed: each holder pauses once with the 38.0 mm layer complete, each 20 × 10 × 3 mm magnet and its plug go in, and the last 2 mm caps them permanently. Sliced and path-checked; not yet printed.

All four holders loaded with nominal handle envelopes — MH01 jeweler bar on top, then 6 mm, 8 mm and 1/4 inch hex. Handles are nominal planning cylinders, not measured tools.

They tile on the grid

Width is 25.4 mm × cells − 2 mm, with pegs in the two outermost cell centres. Seat pitch is cells × 25.4 ÷ seats with the row centred, so identical bars hung side by side keep the same seat spacing across their 2 mm seam. Eight handle-clear seats of I or M need 355-406 mm, more than one P1S print, so each eight-seat row is a pair of four-seat bars.

Part	Letter	Seats	Cells	Width mm	Pitch mm	Print
MH01	E	6	4	99.6	16.93	1
MH02	I	4	7	175.8	44.45	2
MH03	M	4	8	201.2	50.80	2
MH04	O	4	8	201.2	50.80	1

26 magnets in total: 6 + 2 × 4 + 2 × 4 + 4.

Print, pause, load

Plate	Contents	Material	Time	Pause
1	26 plugs — print first	12.5 g	41m 48s	none
2	MH01 · letter E · 6 magnets	71.7 g	3h 1m 29s	before Z 38.2
3	MH02 · letter I · 4 magnets — print twice	108.0 g	4h 2m 19s	before Z 38.2
4	MH03 · letter M · 4 magnets — print twice	120.9 g	4h 27m 40s	before Z 38.2
5	MH04 · letter O · 4 magnets	120.9 g	4h 23m 24s	before Z 38.2

All seven prints: about 663 g and 25 hours. Textured PEI, 0.20 mm layers, four walls, 15% gyroid, build-plate supports and 3 mm brim, the same settings as the MS01 v2 job.

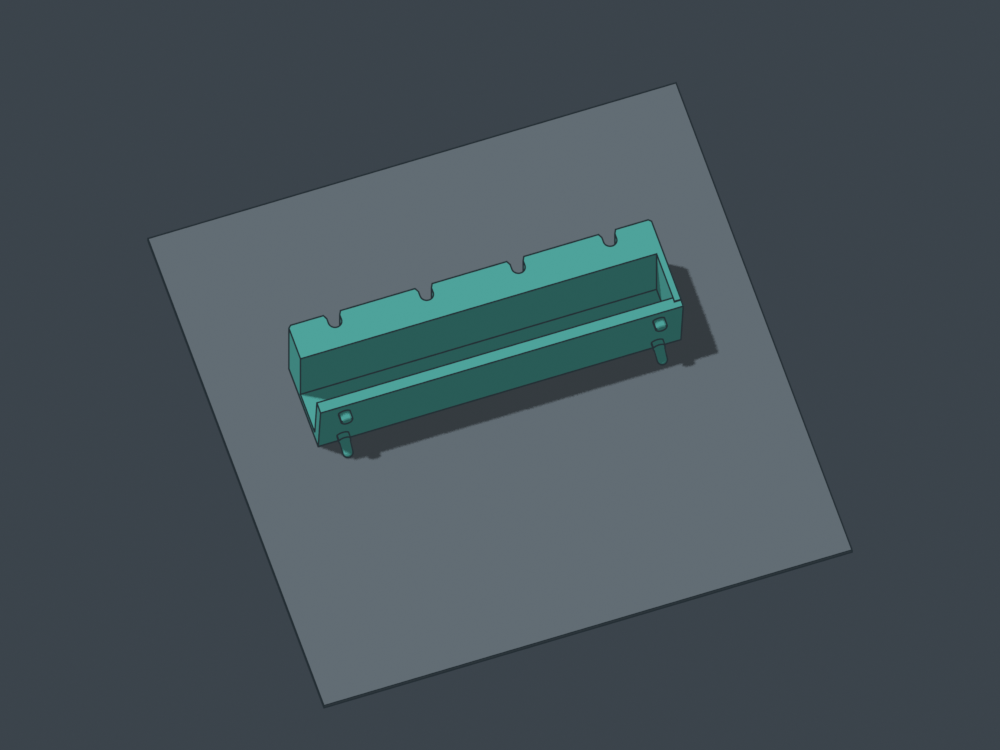

Print plate 1. Holders print flat top down.
At the pause every chimney is open. Slide one magnet into each with its 20 mm length vertical, then a plug; the plug ends 1 mm below the rim. Keep loose magnets away from the nozzle and each other.
Resume. The next layer begins the permanent cap.
Remove the brim and local peg supports before mounting.

Checked on the emitted G-code: nothing outside the bed, path accounting and startup clearance pass, exactly one pause per holder plate, zero extrusion inside any of the 18 magnet chimneys below 38.0 mm, and every chimney first closes at 38.2 mm. Desktop GUI opening was not checked.

MH01 · Jeweler drivers · letter E

4.0 mm round shafts in a 4.3 mm seat. Six seats at 16.93 mm, tighter than the sampler's 17.5 mm trial pitch. Three cells would leave a 0.15 mm wall beside the outer magnets, so four cells is the narrowest bar that tiles. Print one.

6 seats · 4 cells · 99.6 mm wide · 16.93 mm pitch · 6 magnets per print.

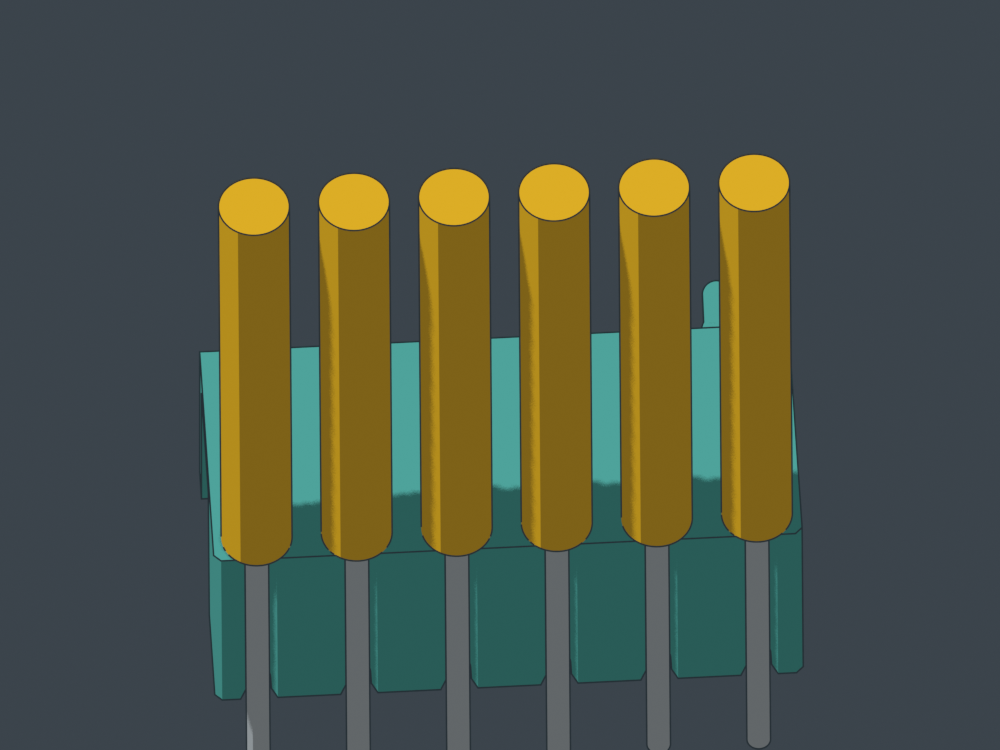

MH01 loaded with nominal handle envelopes

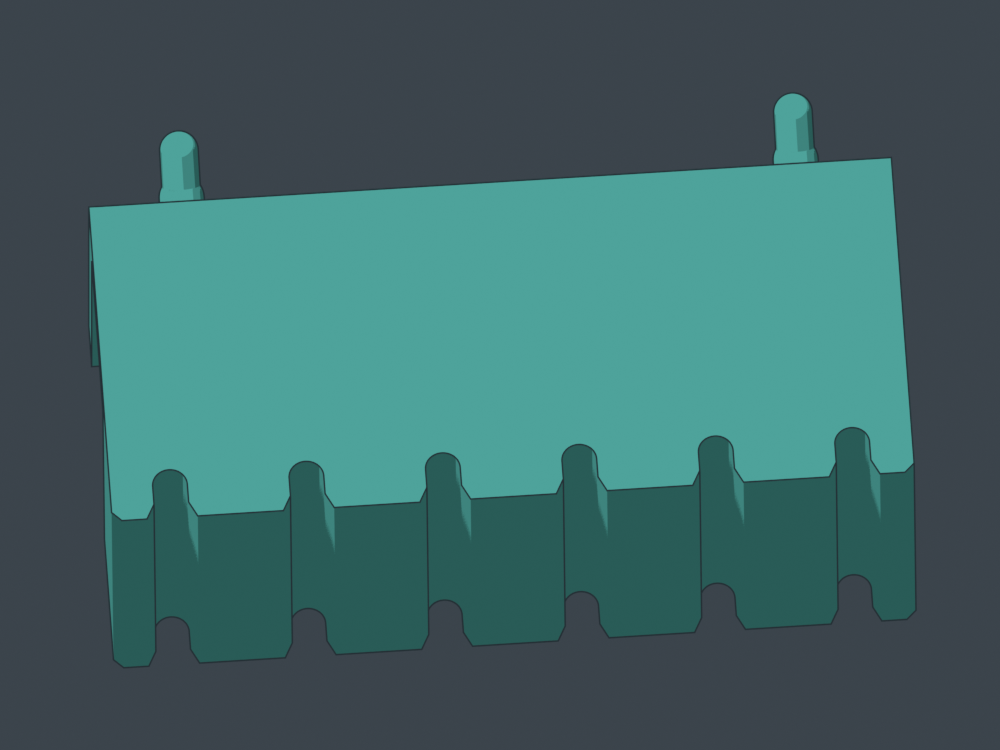

MH01 empty seats on the flat 5 degree bearing top

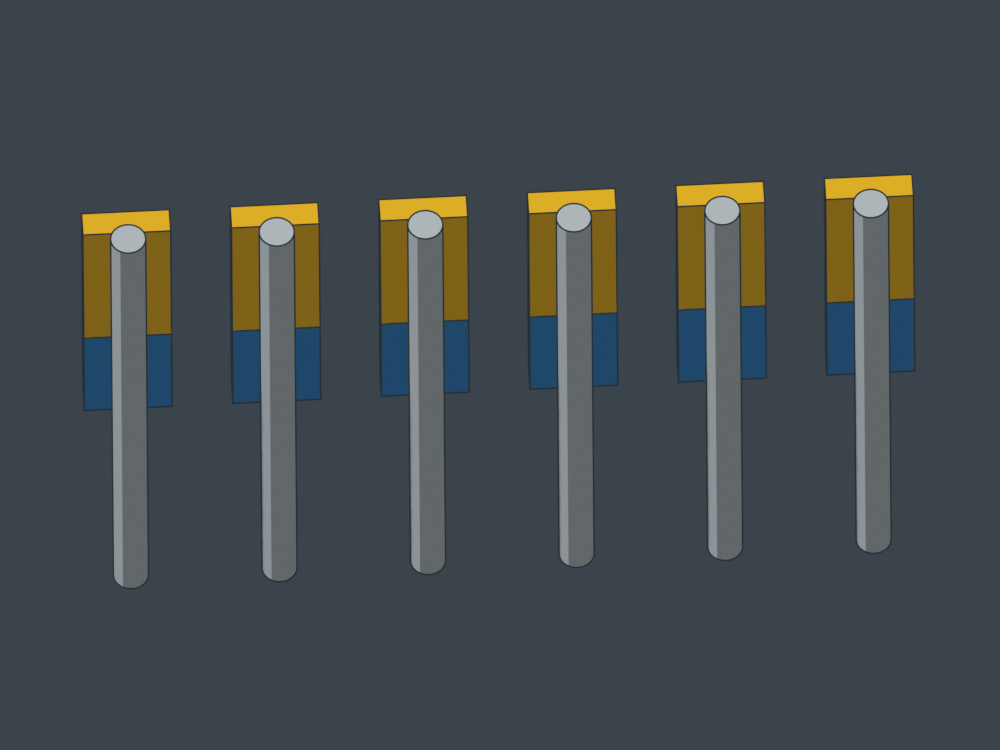

Gold magnets and blue plugs behind each seated shaft

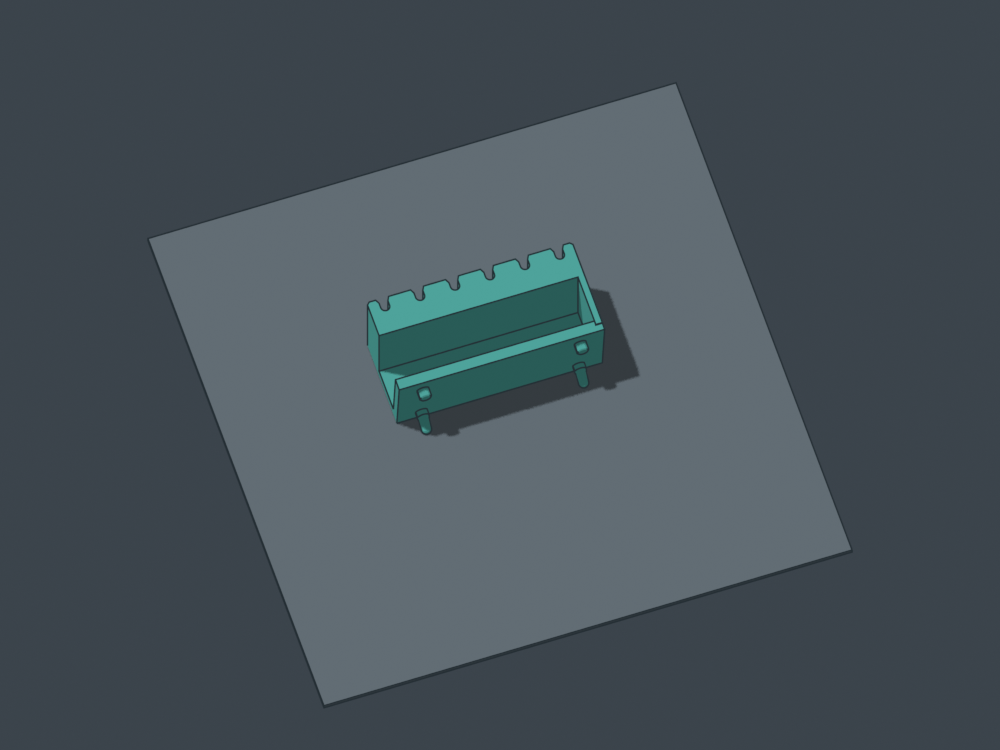

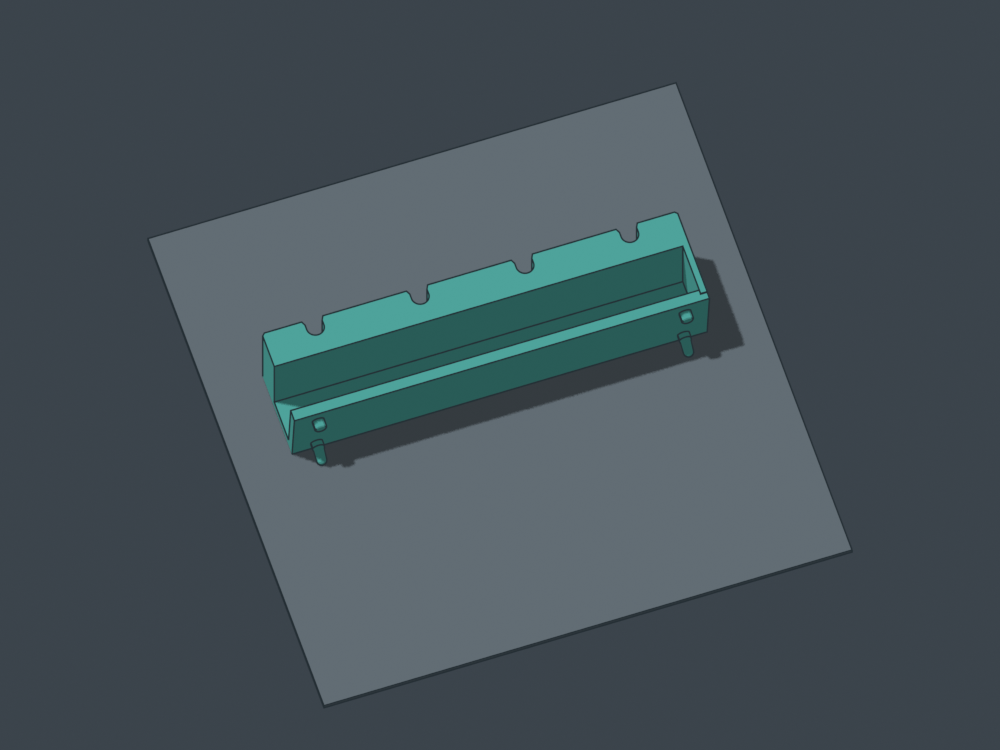

Print pose: flat top down on a 256 mm bed

Rotate MH01

MH02 · 6 mm drivers · letter I

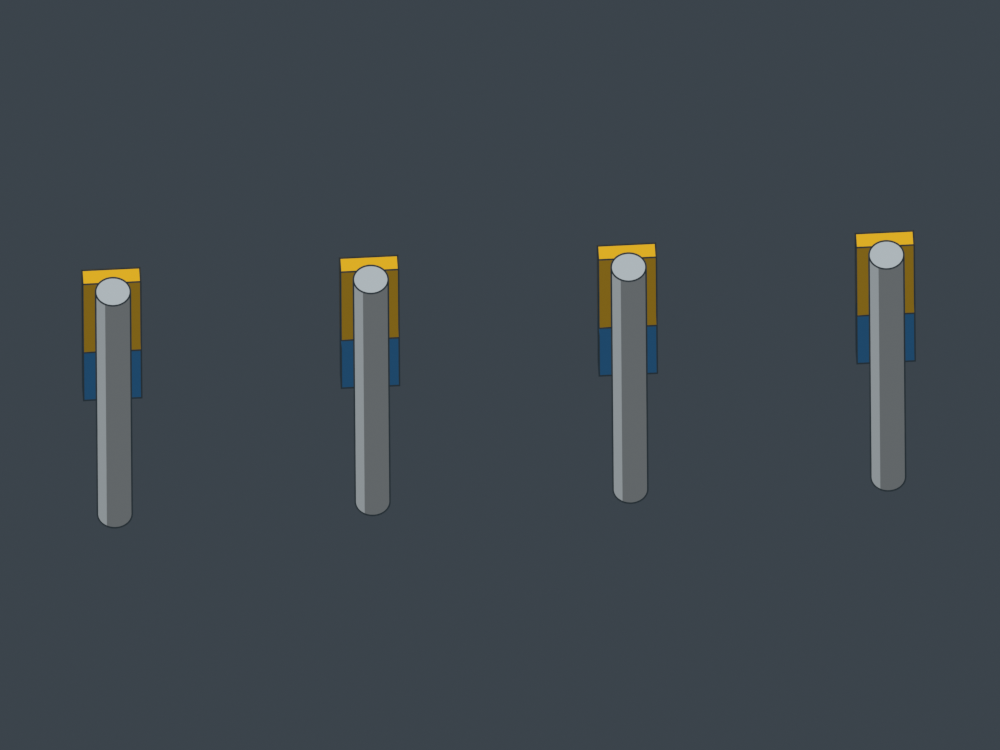

6.0 mm round shafts in a 6.3 mm seat. Four seats at 44.45 mm for roughly 30 mm handles. Print two: side by side they make the eight-seat row, and the 44.45 mm spacing carries straight across the 2 mm seam.

4 seats · 7 cells · 175.8 mm wide · 44.45 mm pitch · 4 magnets per print.

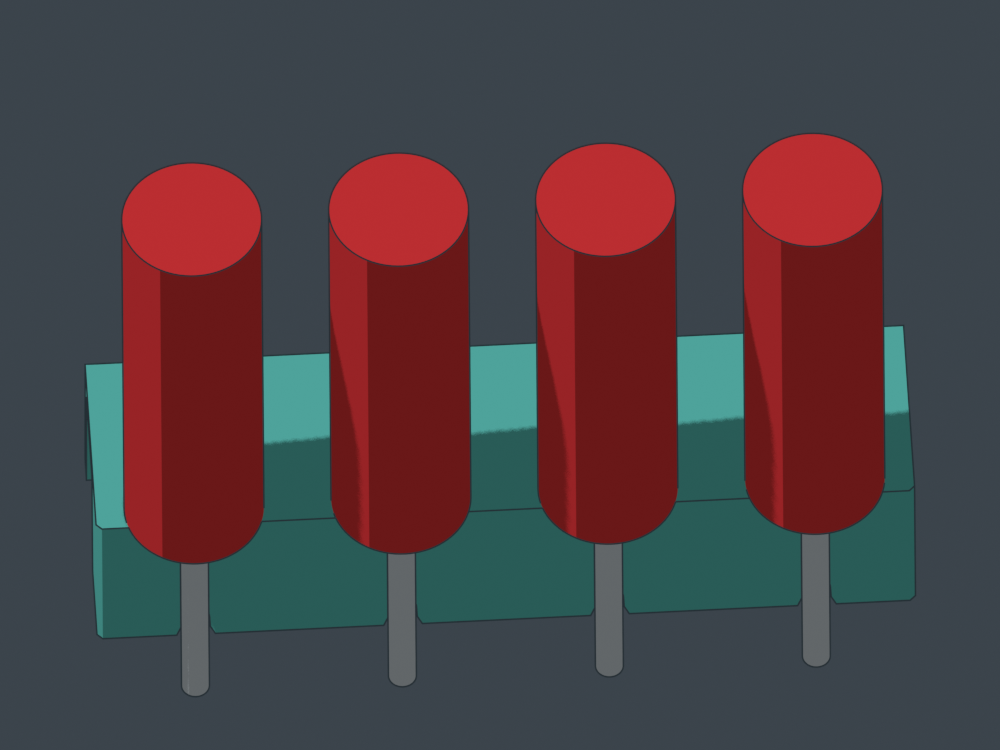

MH02 loaded with nominal handle envelopes

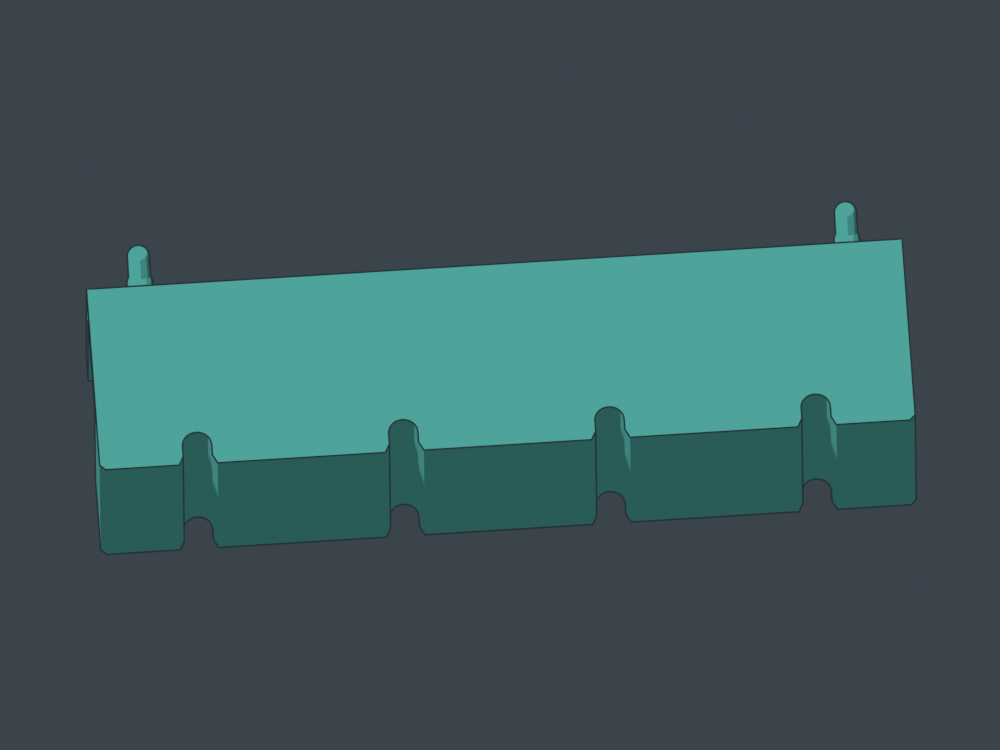

MH02 empty seats on the flat 5 degree bearing top

Rotate MH02

MH03 · 8 mm drivers · letter M

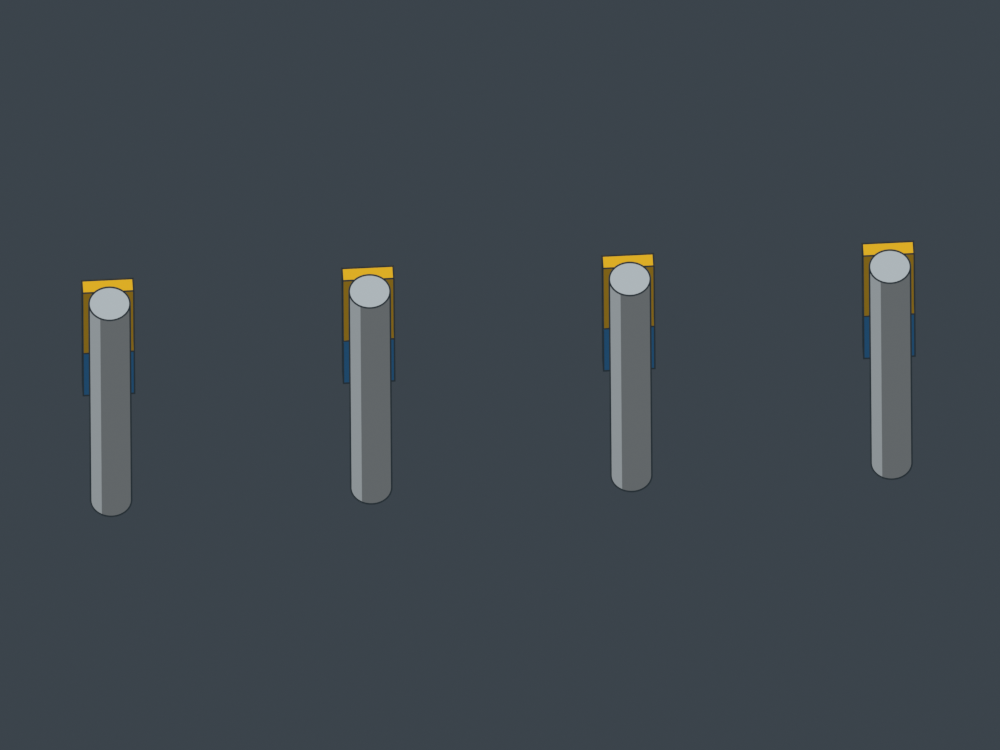

8.0 mm round shafts in an 8.3 mm seat. Four seats at 50.8 mm for roughly 40 mm handles. Print two for the eight-seat row; spacing continues across the seam.

4 seats · 8 cells · 201.2 mm wide · 50.80 mm pitch · 4 magnets per print.

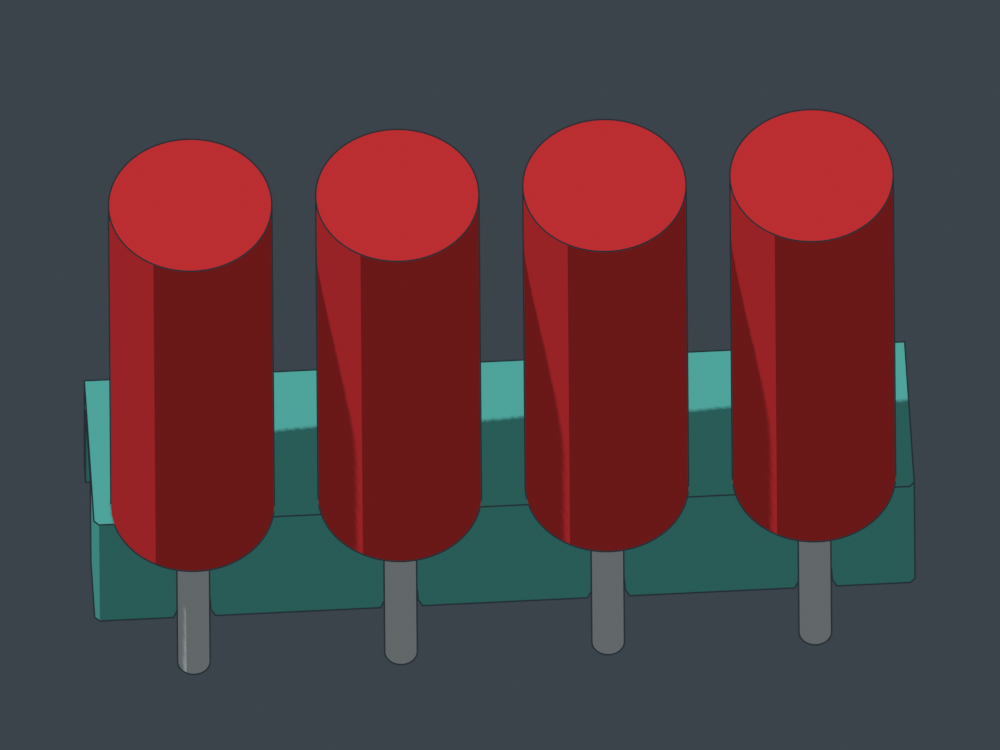

MH03 loaded with nominal handle envelopes

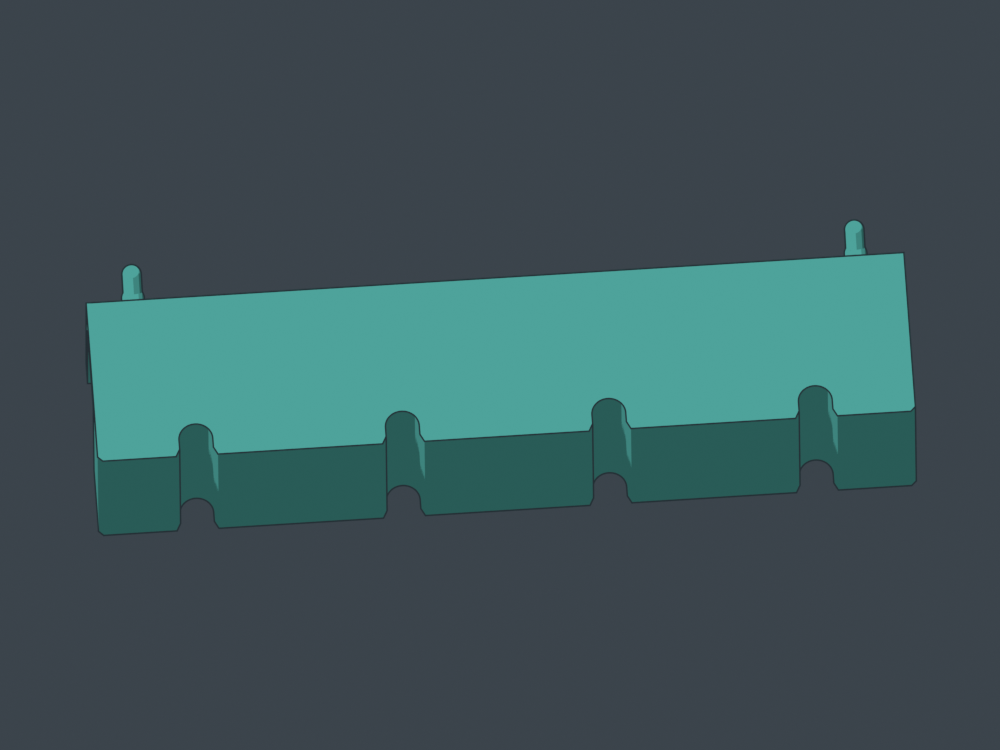

MH03 empty seats on the flat 5 degree bearing top

Rotate MH03

MH04 · Bit holders · letter O

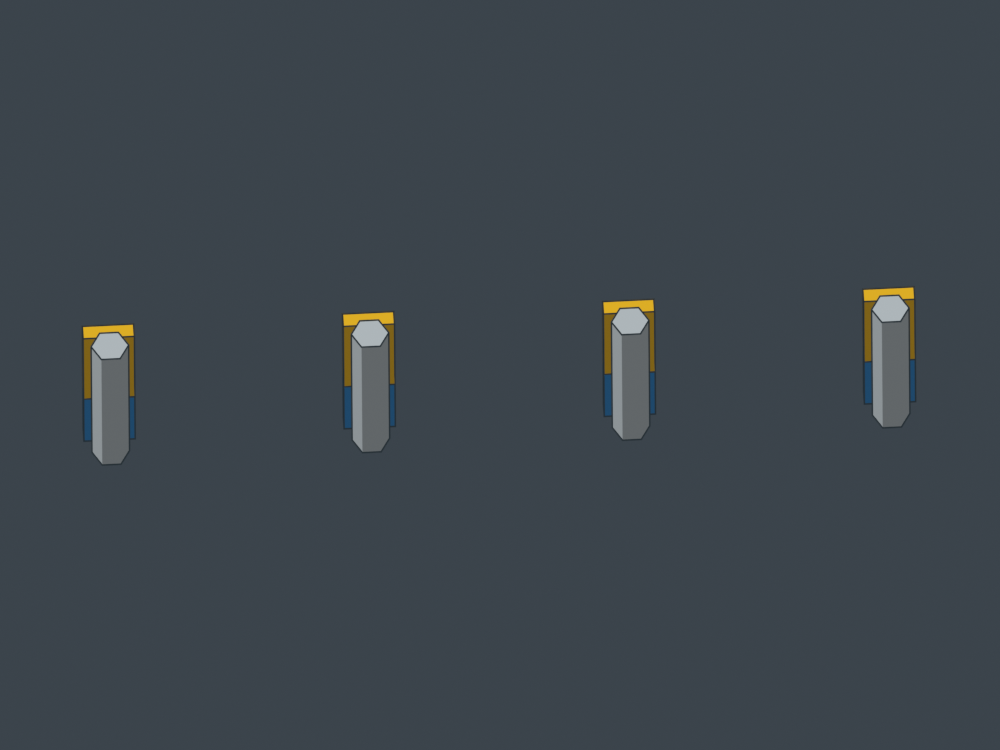

1/4 inch hex in a 6.75 mm across-flats seat (+0.20 mm per face). Four seats at the widest 50.8 mm pitch for fat bit-holder handles. Print one.

4 seats · 8 cells · 201.2 mm wide · 50.80 mm pitch · 4 magnets per print.

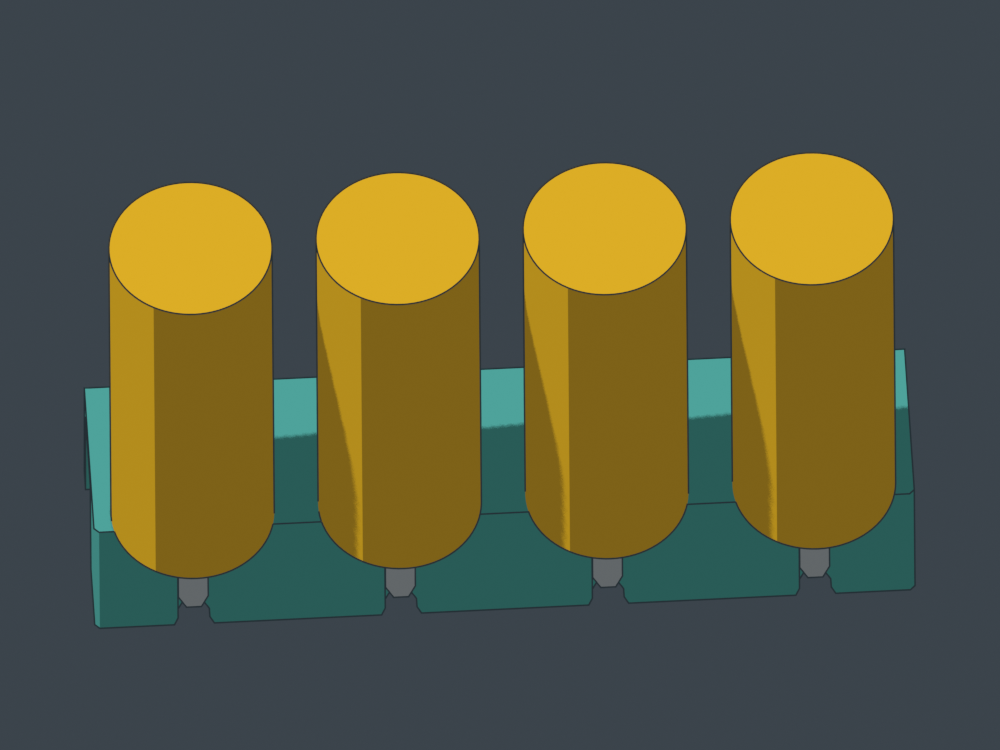

MH04 loaded with nominal handle envelopes

MH04 empty seats on the flat 5 degree bearing top

Rotate MH04

Same pegs as the sampler

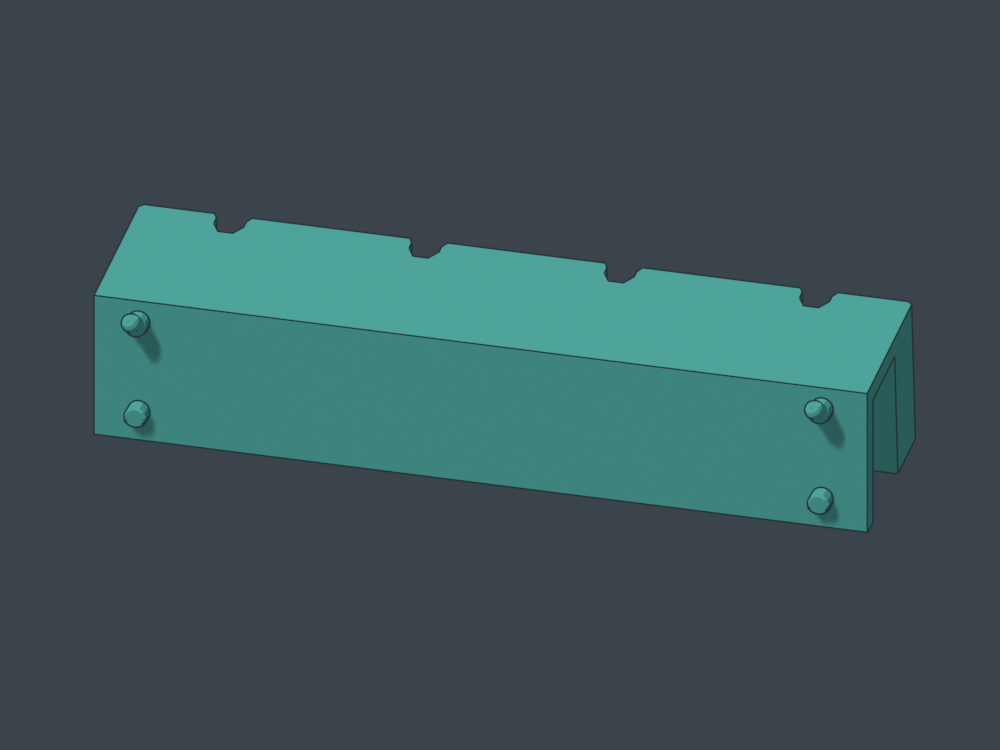

Rear face of MH04 with two hooked pegs and two lower locators in the outer cells — Flush rear face, integral tight pegs in the outermost cells. Shown: MH04.

What the CAD checks cover

One valid solid per holder; STEP round trips; both peg flats on the bed plane; seated tool clear of the holder; bearing contact under a 0.1 mm drop; lift-then-forward withdrawal with every neighbour seated; 0.99-1.04 mm magnet-to-shaft gap, matching sealed v2; straight magnet and plug loading path at the pause; print bounds under 250 mm.

Not established: support removal, physical fit, load, and magnetic feel at this spacing. Nothing has been sent to a printer. You judged the letters in the open v3 channel, where the magnet gap could range 0.82-1.62 mm; the sealed pocket holds it near 1.02 mm.
